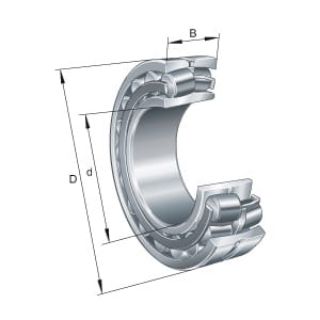

Actual Product May Vary From Image

22217-E1-XL-K-C3 FAG

Name: 22217-E1-XL-K-C3 FAG
Brand: INA
SKU: 22217-E1-XL-K-C3 FAG
Price: 462.82 USD
Availability: OutOfStock

FAG 22217-E1-XL-K-C3 222..-E1-K Tapered Bore Spherical Roller Bearing, 85 mm Dia Bore, 150 mm OD, 2 Rows, 36 mm W, 305000 N Dynamic/325000 N Static Load

Manufacturer: INA

Manufacturer part number: 22217-E1-XL-K-C3

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$462.82

Qty:

Product Details

Brand Name

FAG

Type

Tapered Bore

Description

FAG spherical roller bearings have proved highly effective wherever high loads are present and there is a need to compensate for shaft deflections and/or misalignment of bearing seats.

FAG Spherical Roller Bearing, Tapered Bore, Series: 222..-E1-K, 85 mm Bore Dia, 150 mm Outside Dia, 2 Rows, 36 mm W, Open Closure, 305000 N Dynamic/325000 N Static, Steel Bearing, Steel Cage, 5700 rpm Maximum, -30 to 200 deg C, Uncoated

Application

Vibrating Screens, Continuous Casting Machines, Wind Turbines and Paper Production

Standards

Meets to DIN 635-2

Features

Higher performance bearing arrangements
Lower operating costs
C3 radial internal clearance

Specifications

Bearing Material:	Steel
Bore Diameter:	85 mm
Cage Material:	Steel
Closure Type:	Open
Finish:	Uncoated
Load Capacity:	305000 N Dynamic/325000 N Static
Maximum Speed:	5700 rpm
Number of Rows:	2
Outside Diameter:	150 mm
Series:	222..-E1-K
Temperature Rating:	-30 to 200 deg C
Width:	36 mm
