Actual Product May Vary From Image

22236-E1-XL-C3 FAG

Name: 22236-E1-XL-C3 FAG
Brand: INA
SKU: 22236-E1-XL-C3 FAG
Price: 2,730.20 USD
Availability: OutOfStock

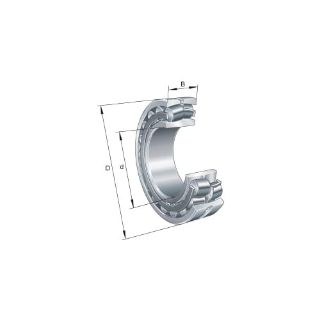

FAG 22236-E1-XL-C3 222..-E1 Cylindrical Bore Spherical Roller Bearing, 180 mm Dia Bore, 320 mm OD, 2 Rows, 86 mm W, 1360000 N Dynamic/1680000 N Static Load

Manufacturer: INA

Manufacturer part number: 22236-E1-XL-C3

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$2,730.20

Qty:

Product Details

Brand Name

FAG

Type

Cylindrical Bore

Description

FAG spherical roller bearings have proved highly effective wherever high loads are present and there is a need to compensate for shaft deflections and/or misalignment of bearing seats.

FAG Spherical Roller Bearing, Cylindrical Bore, Series: 222..-E1, 180 mm Bore Dia, 320 mm Outside Dia, 2 Rows, 86 mm W, Open Closure, 1360000 N Dynamic/1680000 N Static, Steel Bearing, Steel Cage, 2470 rpm Maximum, -30 to 200 deg C, Uncoated

Application

Vibrating Screens, Continuous Casting Machines, Wind Turbines and Paper Production

Standards

Meets to DIN 635-2

Features

Higher performance bearing arrangements
Lower operating costs
C3 radial internal clearance

Specifications

Bearing Material:	Steel
Bore Diameter:	180 mm
Cage Material:	Steel
Closure Type:	Open
Finish:	Uncoated
Load Capacity:	1360000 N Dynamic/1680000 N Static
Maximum Speed:	2470 rpm
Number of Rows:	2
Outside Diameter:	320 mm
Series:	222..-E1
Temperature Rating:	-30 to 200 deg C
Width:	86 mm
