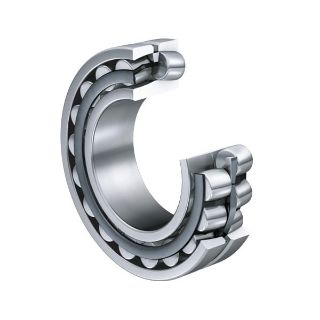

Actual Product May Vary From Image

22238-BE-XL-K-C3 FAG

Name: 22238-BE-XL-K-C3 FAG
Brand: INA
SKU: 22238-BE-XL-K-C3 FAG
Price: 3,179.31 USD
Availability: OutOfStock

FAG 22238-BE-XL-K-C3 Tapered Bore Spherical Roller Bearing, 190 mm Dia Bore, 340 mm OD, 2 Rows, 92 mm W, 1760 kN Load

Manufacturer: INA

Manufacturer part number: 22238-BE-XL-K-C3

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$3,179.31

Qty:

Product Details

Brand Name

FAG

Type

Tapered Bore

Description

Spherical roller bearings are a special rolling bearing design whose inner ring runs inside the outer ring on two rows of rollers. The bearings have an angular adjustment of up to 2 deg and are not only designed for high load carrying capacity but can also compensate misalignments.

FAG Spherical Roller Bearing, Tapered Bore, Series: 222-BE, 190 mm Bore, 340 mm OD, 2 Rows, 92 mm Width, Open Closure, 1760 kN Load, Sheet Steel Cage, 2480 rpm Maximum, -30 to 200 deg C

Application

Dryer Rolls and Calendars, Mining Machinery, Conveyor Belts, Crushers, Vibrating Screens, Vertical Mills, Roller Presses, Continuous Casting Plant, Passenger Elevators, Marine Propulsion Systems

Features

Spherical roller bearings are suitable where rearing arrangements are subjected to high and very high radial loads
Relatively high axial loads occur on one or both sides, in addition to high radial forces
Dynamic or static misalignments of the shaft relative to the housing, or deflections of the shaft, must be freely compensated by the bearing
High shock type loads must be supported dynamically
Locating bearings with a very high load carrying capacity are required
Two sheet steel cages, surface hardened, guidance on inner ring
X-life design
1:12 tapered bore
C3 radial internal clearance
Loose central rib
1360 kN dynamic/1760 kN static

Specifications

Bore Diameter:	190 mm
Cage Material:	Sheet Steel
Closure Type:	Open
Country of Origin:	US
Load Capacity:	1760 kN
Maximum Speed:	2480 rpm
Number of Rows:	2
Outside Diameter:	340 mm
Series:	222-BE
Temperature Rating:	-30 to 200 deg C
Width:	92 mm
