22309 YMW22C4 TKN

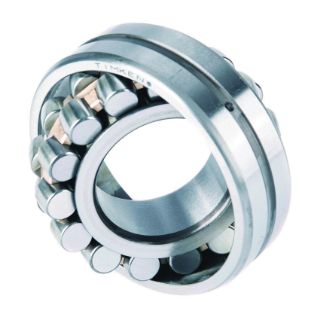

Timken® 22309EMW22C4 Straight Bore Type EM Spherical Roller Bearing, 45 mm Dia Bore, 100 mm OD, 2 Rows, 36 mm W, 180 kN Dynamic/169 kN Static Load
Manufacturer: Timken
Manufacturer part number: 22309EMW22C4
Availability: Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
Price on Request

Product Details

Brand Name

Timken®

Type

Straight Bore Type EM

Description

Timken® high performance spherical roller bearings feature industry-leading load ratings and thermal reference speeds. With one of the broadest offerings in the industry, Timken® high performance spherical roller bearings handle high radial loads, as well as axial loads in both directions. Up to 2.5 deg of shaft misalignment can be accommodated.
Timken® Spherical Roller Bearing, Straight Bore Type EM, Series: 223, 45 mm Bore Dia, 100 mm Outside Dia, 2 Rows, 36 mm W, Open Closure, 180 kN Dynamic/169 kN Static, Steel Bearing, Brass Cage, 5100 rpm Grease/6100 rpm Oil Maximum, -65 to 392 deg F, Polished Chrome

Application

Continuous Casters, Metal Mills, Crushers, Vibrating Screens, Excavation/Loading, Miners, Bulk Material Handling, Conveying, Oil, Gas, Mud Pumps, Pulp and Paper

Features

  • Enhanced surface finishes
  • Industry leading load ratings
  • 1-piece, machined-brass, roller riding, finger-type cage
  • W22 outer ring has reduced outside diameter tolerance
  • C4 radial internal clearance
  • Run at consistently lower temperatures than same size competitive bearings for greater reliability
  • Multiple cage designs including a wide range of both steel and brass and help reduce stress at high shock loads or speeds and provide strong contaminant purge
  • Optimized internal geometries deliver the highest load and speed ratings in the industry
  • EM bearings supersede YM bearings

Specifications

Bearing Material:Steel
Bore Diameter:45 mm
Cage Material:Brass
Closure Type:Open
Finish:Polished Chrome
Load Capacity:180 kN Dynamic/169 kN Static
Maximum Speed:5100 rpm Grease/6100 rpm Oil
Number of Rows:2
Outside Diameter:100 mm
Series:223
Temperature Rating:-65 to 392 deg F
Width:36 mm
