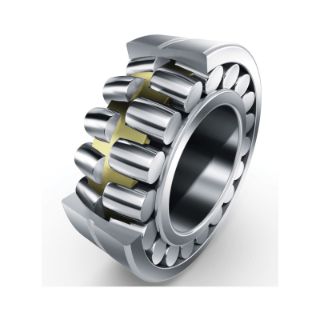

Actual Product May Vary From Image

22320-E1A-XL-MA-T41A FAG

Name: 22320-E1A-XL-MA-T41A FAG
Brand: INA
SKU: 22320-E1A-XL-MA-T41A FAG
Price: 1,244.73 USD
Availability: OutOfStock

FAG 22320-E1A-XL-MA-T41A Cylindrical Bore Spherical Roller Bearing, 100 mm Dia Bore, 215 mm OD, 2 Rows, 73 mm W, 920000 N Load

Manufacturer: INA

Manufacturer part number: 22320-E1A-XL-MA-T41A

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$1,244.73

Qty:

Product Details

Brand Name

FAG

Type

Cylindrical Bore

Description

Spherical roller bearings are a special rolling bearing design whose inner ring runs inside the outer ring on two rows of rollers. The bearings have an angular adjustment of up to 2 deg and are not only designed for high load carrying capacity but can also compensate misalignments.

FAG Spherical Roller Bearing, Cylindrical Bore, Series: 223-E1A, 100 mm Bore, 215 mm OD, 2 Rows, 73 mm Width, Open Closure, 920000 N Load, Solid Brass Cage, 3000 rpm Maximum, -30 to 200 deg C

Application

Dryer Rolls and Calendars, Mining Machinery, Conveyor Belts, Crushers, Vibrating Screens, Vertical Mills, Roller Presses, Continuous Casting Plant, Passenger Elevators, Marine Propulsion Systems

Features

Spherical roller bearings are suitable where rearing arrangements are subjected to high and very high radial loads
Relatively high axial loads occur on one or both sides, in addition to high radial forces
Dynamic or static misalignments of the shaft relative to the housing, or deflections of the shaft, must be freely compensated by the bearing
High shock type loads must be supported dynamically
Locating bearings with a very high load carrying capacity are required
The solid brass cages are guided on the outer
For vibratory machinery
X-life design
T41A for oscillating load with restricted diameter tolerances, C4 radial internal clearance
Without central rib on inner ring
810000 N dynamic/920000 N static

Specifications

Bore Diameter:	100 mm
Cage Material:	Solid Brass
Closure Type:	Open
Country of Origin:	US
Load Capacity:	920000 N
Maximum Speed:	3000 rpm
Number of Rows:	2
Outside Diameter:	215 mm
Series:	223-E1A
Temperature Rating:	-30 to 200 deg C
Width:	73 mm
