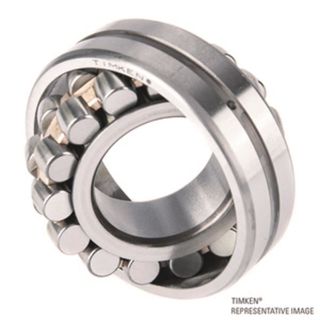

Picture of 22322EMW47W22C3 TKN
Actual Product May Vary From Image

22322EMW47W22C3 TKN

Timken 22322EMW47W22C3 Spherical Roller Bearings Brass Cage Straight Bore | Bore 110.000 mm 4.3307 in | OD 240.000 mm 9.4488 in | Width 80.000 mm 3.1496 in
Manufacturer: Timken
Manufacturer part number: 22322EMW47W22C3
Availability: Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
Price on Request

Product Details

Brand Name

Timken

Description

Timken® high performance spherical roller bearings feature industry-leading load ratings and thermal reference speeds. With one of the broadest offerings in the industry, Timken® high performance spherical roller bearings handle high radial loads, as well as axial loads in both directions. Up to 2.5° of shaft misalignment can be accommodated.

Features

Enhanced surface finishes | Optimized internal geometry | Industry-leading load ratings | One-piece, machined-brass, roller riding, finger-type cage |(W47) Inner ring has an oversized bore |(W22) Outer ring has reduced outside diameter tolerance

Specifications

Bearing Material:Steel
Bearing Type:Spherical Roller Bearings
Bore Type:Straight
Cage (Retainer) Type:Design Style - EM
Cage Material:Brass Cage
Component (I/R; O/R assembly):Assembly
Dynamic Load Rating:213000
Fillet Radius - Inch:0.1
Fillet Radius - Millimeter:2.5
Inner Race Width (in):3.1496
Inner Race Width (mm):80
Internal Clearance:C3
Load Rating UOM:LB
Lubrication Hole/Groove:no
Manufacturer Produt Page Link:https://www.timken.com/products/timken-engineered-bearings/spherical/
Material - Rolling Elements:Roller
Maximum Operating RPM (Grease):2200
Maximum Operating RPM (Oil):2500
Outer Diameter (in):9.449
Outer Diameter (mm):240
Outer Diameter Type:Straight
Outer Race Width (in):3.1496
Outer Race Width (mm):80
Overall Width (in):3.15
Overall Width (mm):80
Precision class:P0
Relubricatable:no
Rolling Element:Spherical
Row Type:Double
Self Aligning:Yes
Series:223
Shaft Size (in):4.331
Shaft Size (mm):110
Snap Ring:no
Static Load Rating:949000

Resources

Brochure
