Actual Product May Vary From Image

226M BLT

Name: 226M BLT
Brand: Bearings Limited
SKU: 226M BLT
Availability: OutOfStock

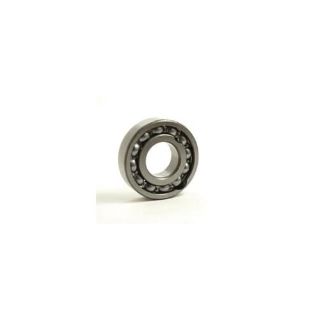

Max Type Ball Bearing, 130mm Bore Dia., 230mm Outside Dia., 40mm Width

Manufacturer: Bearings Limited

Manufacturer part number: 226M

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

TRITAN

Description

Max Type single row deep groove ball bearings are designed with a loading slot in both the inner and outer rings which allows for more and larger balls to be incorporated than standard ball bearings. Max type bearings share the same dimensions as the standard 6200/6300 series bearings but have higher load carrying capacity, and lower operating speed limits

Features

Single loading slot in inner and outer rings enabling more balls to be added. Higher radial load capacity

Specifications

Bore Diameter:	130mm
Cage Material:	Pressed Steel
Material:	52100 Steel
Operating Temperature Range:	-20 to +390 °F
Outside Diameter:	230mm
Precision Class:	ABEC 1 (ISO Class Normal)
Seal / Shield Material:	N/A Open
Seal / Shield Type:	None/Open
Snap Ring Included:	No Ring or groove
Weight (Lbs):	7.99
Width:	40mm
