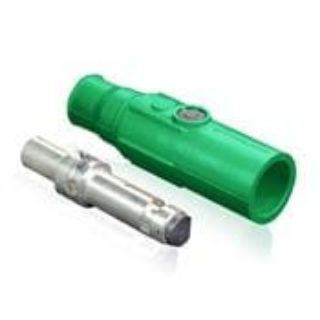

Actual Product May Vary From Image

22L21-G LEV

Name: 22L21-G LEV
Brand: Leviton Manufacturing
SKU: 22L21-G LEV
Availability: OutOfStock

Leviton® 22L21-G 22 Series 1-Pole Ball Nose Cam Type In-Line Latching Male Connector, 600 VAC, 690 A, 250 to 350 kcmil Wire, Crimped Connection, NEMA 3R NEMA Rating

Manufacturer: Leviton Manufacturing

Manufacturer part number: 22L21-G

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Leviton®

Type

1-Pole Ball Nose Cam Type In-Line Latching

Description

Leviton® cam type positive latching connectors and receptacles are the standard used by navy bases and shipyards in supplying 3-phase power to ships at dockside. Our latching connector series has been tested to meet navy specs, including intermateability with competition. They provide heavy duty, completely insulated connectors that are vibration resistant. These connectors will not vibrate or loosen, ensuring high conductivity and maximum efficiency. Contacts can be retrofitted to existing locations and power distribution systems. Male contacts provide 40% more surface contact with the female vs competitive products, ensuring greater conductivity while preventing burnout.

Leviton® Male Connector, 1-Pole Ball Nose Cam Type In-Line Latching, Series: 22 Series, 600 VAC, 690 A, 250 to 350 kcmil Wire, Crimped, Brass Contact, Neoprene Housing, NEMA 3R, Green, 7.81 in L x 2.45 in H

Application

Motor, Generator Splices, Mining, Construction Sites, Commercial, Navy Shipbuilding, Repair, Other Temporary Power Applications, Entertainment, Movie Industry, Concerts, Theme Parks, Carnival Equipment and Conventions

Standards

CSA Certified | UL Listed

Features

Color coded connector insulator for quick, visual identification of circuit and phase connections
High conductivity positive, vibration proof connection provided by double cam design
Shatter and crack proof, high durometer thermoplastic vulcanizate (TPV) or neoprene rubber
Self-compensating for wear slit in male contact provides spring action for longer usage
Hard thermoplastic screw provides strength and durability
Intermateable with competitive cam type products and can be retrofitted to existing locations and power distribution systems

Specifications

Amperage Rating:	690 A
Color:	Green
Connection Type:	Crimped
Contact Material:	Brass
Country of Origin:	MX
Dimensions:	7.81 in L x 2.45 in H
Housing Material:	Neoprene
NEMA Rating:	NEMA 3R
Series:	22 Series
Voltage Rating:	600 VAC
Wire Size:	250 to 350 kcmil
