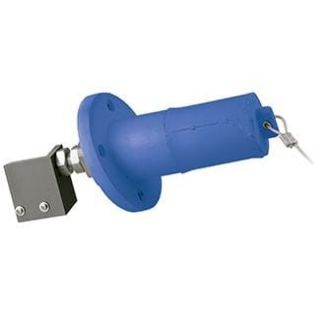

Actual Product May Vary From Image

22R28-B LEV

Name: 22R28-B LEV
Brand: Leviton Manufacturing
SKU: 22R28-B LEV
Availability: OutOfStock

Leviton® 22R28-B 22 Series 15 deg Ball Nose Cam Type Female Single Pole Receptacle With Microswitch, 600 VAC, 690 A, 250 to 750 kcmil Wire, Threaded/Stud Connection

Manufacturer: Leviton Manufacturing

Manufacturer part number: 22R28-B

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Leviton®

Type

15 deg Ball Nose Cam Type Female

Description

Leviton® cam type positive latching connectors and receptacles are the standard used by navy bases and shipyards in supplying 3-phase power to ships at dockside. Our latching connector series has been tested to meet navy specs, including intermateability with competition. They provide heavy duty, completely insulated connectors that are vibration resistant. These connectors will not vibrate or loosen, ensuring high conductivity and maximum efficiency. Contacts can be retrofitted to existing locations and power distribution systems. Male contacts provide 40% more surface contact with the female vs competitive products, ensuring greater conductivity while preventing burnout.

Leviton® Single Pole Receptacle, 15 deg Ball Nose Cam Type Female, Series: 22 Series, 600 VAC, 690 A, 250 to 750 kcmil Wire, Threaded/Stud, Brass Contact, Neoprene Housing, Panel Mount, -60 to 135 deg C, Blue, 4.5 in Dia x 7.61 in L

Application

Commercial, Navy Shipbuilding, Sports, Entertainment, Movie Industry, Welding, Construction Sites, Theme Parks, Carnival Equipment, Repair, Concert Venues, Convention Centers, Petrochemical, Manufacturing Plant Turnarounds, Motor, Generator Splices, Numerous Other Temporary Power Applications, Mining Operations and Industrial Applications

Standards

UL94 HB Flammability Rating

Specifications

Amperage Rating:	690 A
Color:	Blue
Connection Type:	Threaded/Stud
Contact Material:	Brass
Country of Origin:	MX
Dimensions:	4.5 in Dia x 7.61 in L
Housing Material:	Neoprene
Mounting Type:	Panel
Series:	22 Series
Temperature Rating:	-60 to 135 deg C
Voltage Rating:	600 VAC
Wire Size:	250 to 750 kcmil
