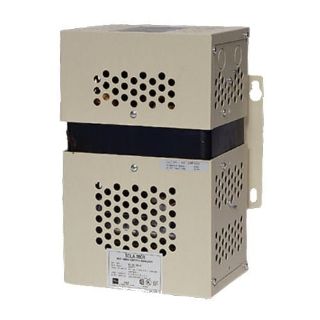

Picture of 23-13-030-2 SHD
Actual Product May Vary From Image

23-13-030-2 SHD

30VA CVS VOLTAGE REGULATOR
Manufacturer: SolaHD (Emerson)
Manufacturer part number: 23-13-030-2
Availability: Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$497.20

Product Details

Brand Name

SolaHD

Type

Silver Line Series - Single & Multi-Output Linears

Description

Features:40 DB (Common Mode/Transverse Mode) Noise Attenuation, Galvanic Isolation, Standard:UL 1012, CSA, Wattage:30VA, Primary Voltage:120V AC, Secondary Voltage:120V AC, Frequency Rating:60HZ, Single Phase

Application

Industrial Control Circuits and Components, Instrumentation, Drives, CNC Machinery, Equipment for food industry, Microprocessor Circuits, Analog Circuits, Noise sensitive Circuitry and Sensors

Standards

UL Recognized Component, ITE, UL 60950-1, CSA Certified, ITE CSA C22.2 CSA 60950-1, CE, IEC60950-1

Features

Easy-to-install screw terminal connections, Cover options, Industry standard footprint, Universal input and approvals (115/230 Vac), Low noise, extremely quiet DC output. For noise sensitive or analog circuitry. Fast transient response. Ideal for test applications. Built-in OVP on 5 V models and optional on 12, 15 and 24 V models. Automatic resetting overload protection. Short circuit protected.

Specifications

Amperage Rating:30 A
Country of Origin:US
Efficiency:Up to 92% at Full Load
Enclosure:Case H2
Frequency Rating:47-63 Hz
Height:4 IN
Length:6.5 IN
Mounting:Bracket
Number of Taps:2
Operating Temperature:-20 to 50 degrees C
Phase:1
Primary Voltage:120
Regulation:+/-1
Secondary Voltage:120
Size:7 High x 4 Wide x 5 Deep
Voltage Rating:100, 120, 220, 230, 240 Selectable VAC
Width:1.62 IN
