23-23-250-8 SHD

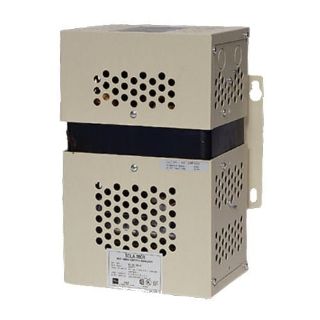

5000VA CVS VOLTAGE REGULATOR
Manufacturer: SolaHD (Emerson)
Manufacturer part number: 23-23-250-8
Availability: Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$8,791.56

Product Details

Brand Name

SolaHD

Type

CVS Hardwired Series - Constant Voltage Transformers

Description

Features:40 DB (Common Mode/Transverse Mode) Noise Attenuation, Galvanic Isolation, Standard:UL 1012, CSA, Wattage:5000VA, Primary Voltage:120/208/240V/480 AC, Secondary Voltage:120/240V AC, Frequency Rating:60HZ, Single Phase

Application

Industrial Automation and Control Equipment Power PLCs, Broadcast Equipment, Photo Processing Equipment

Standards

UL 1012, CSA, ANSI/IEEE C62.41

Features

Superior voltage regulation, Surge protection tested to ANSI/IEEE C62.41. Class A & B waveform, Harmonic filtering, Hardwired, Acts as step-up/step-down transformer, Galvanic isolation, Noise attenuation 40 dB

Specifications

Amperage Rating:3000 VA
Country of Origin:US
Efficiency:Up to 92% at Full Load PCT
Frequency Rating:60 Hz
Mounting:Bracket
Number of Taps:10
Operating Temperature:-20 to 50 degrees C
Phase:1
Primary Voltage:120/208/240/480 VAC
Regulation:+/-1 PCT
Secondary Voltage:120/240 VAC
Size:19 High x 13 Wide x 10 Deep IN
