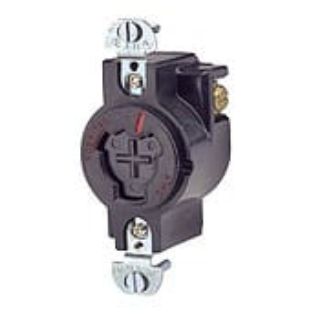

Actual Product May Vary From Image

23000-HG LEV

Name: 23000-HG LEV
Brand: Leviton Manufacturing
SKU: 23000-HG LEV
Availability: OutOfStock

Leviton® 23000-HG Grounding Locking Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Black

Manufacturer: Leviton Manufacturing

Manufacturer part number: 23000-HG

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Leviton®

Type

Grounding

Description

Leviton industry leading locking devices, such as our power Interrupting line of industrial and hospital grade plugs, connectors and flush receptacles offer superior performance, long lasting reliability and other features that are backed by a 10-year limited warranty.

Leviton® Locking Receptacle, Grounding, 125 VAC, 20 A, 2 Pole, 3 Wires, Industrial Grade, -40 to 105 deg C, Back/Side Wire Terminal, Steel, Black

Application

Hospital and Industrial Applications

Standards

UL 498 | cULus Listed | CSA Certified

Features

Withstands 2000 VAC per UL498 dielectric voltage
Full-rated current limiting
Maximum 30 deg C temperature rise after 100 cycles OL at 150% rated current
V0 per UL94 flammability rated
12 to 4 AWG solid or stranded wire terminal accommodation
Ratings and NEMA ID permanently marked on device for identification
Phenolic interior material, 0.03 in THK bronze line contacts, 0.02 in THK bronze receptacle contact support, 0.03 in THK brass receptacle terminals, 0.06 in THK stainless steel receptacle top plate, 0.02 in THK brass receptacle grounding strap, 0.035 in THK stainless steel receptacle cover housing/base
Power inter device
0.065 in THK steel housing
Power interruption
Brass-hot, green-ground, white neutral color for terminal identification

Specifications

Amperage Rating:	20 A
Color:	Black
Country of Origin:	MX
Grade:	Industrial
Material:	Steel
Number of Poles:	2
Number of Wires:	3
Temperature Rating:	-40 to 105 deg C
Terminal Type:	Back/Side Wire
Voltage Rating:	125 VAC
