23044-BE-XL-K-C3 FAG

Name: 23044-BE-XL-K-C3 FAG
Brand: INA
SKU: 23044-BE-XL-K-C3 FAG
Price: 4,187.07 USD
Availability: OutOfStock

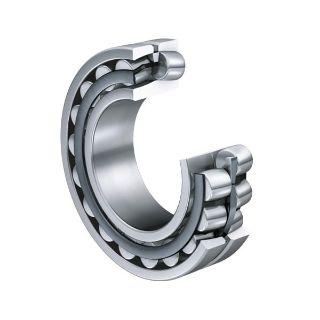

FAG 23044-BE-XL-K-C3 Tapered Bore Spherical Roller Bearing, 220 mm Dia Bore, 340 mm OD, 2 Rows, 90 mm W, 1900 kN Load

Manufacturer: INA

Manufacturer part number: 23044-BE-XL-K-C3

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$4,187.07

Qty:

Product Details

Brand Name

FAG

Type

Tapered Bore

Description

Spherical roller bearings are a special rolling bearing design whose inner ring runs inside the outer ring on two rows of rollers. The bearings have an angular adjustment of up to 2 deg and are not only designed for high load carrying capacity but can also compensate misalignments.

FAG Spherical Roller Bearing, Tapered Bore, Series: 230-BE, 220 mm Bore, 340 mm OD, 2 Rows, 90 mm Width, Open Closure, 1900 kN Load, Sheet Steel Cage, 2230 rpm Maximum, -30 to 200 deg C

Application

Dryer Rolls and Calendars, Mining Machinery, Conveyor Belts, Crushers, Vibrating Screens, Vertical Mills, Roller Presses, Continuous Casting Plant, Passenger Elevators, Marine Propulsion Systems

Features

Spherical roller bearings are suitable where rearing arrangements are subjected to high and very high radial loads
Relatively high axial loads occur on one or both sides, in addition to high radial forces
Dynamic or static misalignments of the shaft relative to the housing, or deflections of the shaft, must be freely compensated by the bearing
High shock type loads must be supported dynamically
Locating bearings with a very high load carrying capacity are required
Two sheet steel cages, surface hardened, guidance on inner ring
X-life design
1:12 tapered bore
C3 radial internal clearance
Loose central rib
1260 kN dynamic/1900 kN static

Specifications

Bore Diameter:	220 mm
Cage Material:	Sheet Steel
Closure Type:	Open
Country of Origin:	US
Load Capacity:	1900 kN
Maximum Speed:	2230 rpm
Number of Rows:	2
Outside Diameter:	340 mm
Series:	230-BE
Temperature Rating:	-30 to 200 deg C
Width:	90 mm
