23048 KYMW33C08 TKN

Name: 23048 KYMW33C08 TKN
Brand: Timken
SKU: 23048 KYMW33C08 TKN
Price: 6,911.00 USD
Availability: OutOfStock

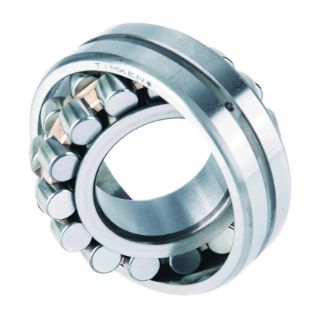

Timken® 23048KEMW33C08 Tapered Bore Type EM Spherical Roller Bearing, 240 mm Dia Bore, 360 mm OD, 2 Rows, 92 mm W, 1400000 N Dynamic/2140000 N Static Load

Manufacturer: Timken

Manufacturer part number: 23048KEMW33C08

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$6,911.00

Qty:

Product Details

Brand Name

Timken®

Type

Tapered Bore Type EM

Description

Misalignment, contamination, high-temperatures, even extreme speeds or critical stresses can present extra challenges when managing high radial loads. Timken® spherical roller bearings can handle it all, with innovations designed to extend bearing life and boost reliability. Timken® spherical roller bearings with hardened steel cages deliver greater fatigue strength, increased wear-resistance and tougher protection against shock and acceleration.

Timken® Spherical Roller Bearing, Tapered Bore Type EM, Series: 230, 240 mm Bore Dia, 360 mm Outside Dia, 2 Rows, 92 mm W, Open Closure, 1400000 N Dynamic/2140000 N Static, Chrome Steel Bearing, Brass Cage, 1300 rpm Grease/1500 rpm Oil Maximum, -65 to 392 deg F, Uncoated

Application

Continuous Casters, Metal Mills, Crushers, Vibrating Screens, Excavation/Loading, Miners, Bulk Material Handling, Conveying, Oil and Gas, Mud Pumps and Pulp and Paper

Features

Run at consistently lower temperatures than same-size competitive bearings for greater reliability
Optimized internal geometries deliver the highest load and speed ratings in the industry
Spherical bearings are designed to manage high radial loads even when misalignment, poor lubrication, contamination, extreme speeds or critical application stresses are present
High-performance one-piece, roller-riding, machined-brass cage
Standard lubrication holes and groove in outer-ring

Specifications

Bearing Material:	Chrome Steel
Bore Diameter:	240 mm
Cage Material:	Brass
Closure Type:	Open
Finish:	Uncoated
Load Capacity:	1400000 N Dynamic/2140000 N Static
Maximum Speed:	1300 rpm Grease/1500 rpm Oil
Number of Rows:	2
Outside Diameter:	360 mm
Series:	230
Temperature Rating:	-65 to 392 deg F
Width:	92 mm
