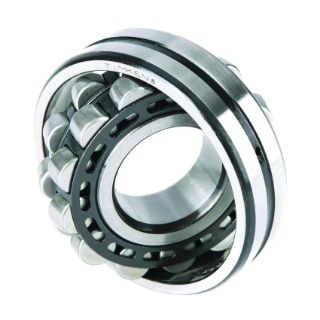

Actual Product May Vary From Image

23076KEJW906AC4 TKN

Name: 23076KEJW906AC4 TKN
Brand: Timken
SKU: 23076KEJW906AC4 TKN
Availability: OutOfStock

Timken Spherical Roller Bearing

Manufacturer: Timken

Manufacturer part number: 23076KEJW906AC4

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Timken

Description

Timken® high performance spherical roller bearings feature industry-leading load ratings and thermal reference speeds. With one of the broadest offerings in the industry, Timken® high performance spherical roller bearings handle high radial loads, as well as axial loads in both directions. Up to 2.5° of shaft misalignment can be accommodated.

Timken Spherical Roller Bearing | 380 mm 15 in Bore | 560 mm 22 in OD

Features

Enhanced surface finishes
Optimized internal geometry
Industry-leading load ratings
Nitride hardened steel cage with face slots |(W906A) Modification used mainly in Paper industry
Inner and outer ring with P5 running accuracy and high points of eccentricity marked
Bearing inspected to certain quality control requirements
Standard lubrication holes and groove in outer ring
Case carburized inner ring and rollers

Specifications

Bearing Material:	Steel
Bearing Type:	Spherical Roller Bearings
Bore Type:	Tapered
Cage (Retainer) Type:	Design Style - EJ
Cage Material:	Steel Cage
Component (I/R; O/R assembly):	Assembly
Dynamic Load Rating:	690000
Fillet Radius - Inch:	0.16
Fillet Radius - Millimeter:	4
Inner Race Width (in):	5.315
Inner Race Width (mm):	135
Internal Clearance:	C4
Load Rating UOM:	LB
Lubrication Hole/Groove:	yes
Manufacturer Produt Page Link:	https://www.timken.com/products/timken-engineered-bearings/spherical/
Material - Rolling Elements:	Roller
Maximum Operating RPM (Grease):	710
Maximum Operating RPM (Oil):	830
Outer Diameter (in):	22.047
Outer Diameter (mm):	560
Outer Diameter Type:	Straight
Outer Race Width (in):	5.315
Outer Race Width (mm):	135
Overall Width (in):	5.315
Overall Width (mm):	135
Precision class:	P0
Relubricatable:	yes
Rolling Element:	Spherical
Row Type:	Double
Self Aligning:	Yes
Series:	230
Shaft Size (in):	14.961
Shaft Size (mm):	380
Snap Ring:	no
Static Load Rating:	1150000
