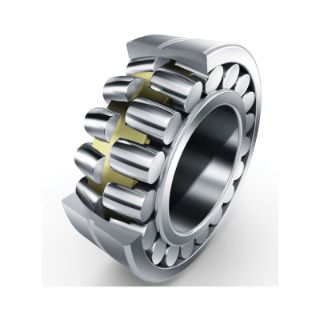

Actual Product May Vary From Image

23096-K-MB-T52BW FAG

Name: 23096-K-MB-T52BW FAG
Brand: INA
SKU: 23096-K-MB-T52BW FAG
Availability: OutOfStock

FAG 23096-K-MB-T52BW Tapered Bore Spherical Roller Bearing, 480 mm Dia Bore, 700 mm OD, 2 Rows, 165 mm W, 8150000 N Load

Manufacturer: INA

Manufacturer part number: 23096-K-MB-T52BW

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

FAG

Type

Tapered Bore

Description

Spherical roller bearings are a special rolling bearing design whose inner ring runs inside the outer ring on two rows of rollers. The bearings have an angular adjustment of up to 2 deg and are not only designed for high load carrying capacity but can also compensate misalignments.

FAG Spherical Roller Bearing, Tapered Bore, Series: 230, 480 mm Bore, 700 mm OD, 2 Rows, 165 mm Width, Open Closure, 8150000 N Load, Solid Brass Cage, 670 rpm Maximum, -30 to 200 deg C

Features

Spherical roller bearings are suitable where rearing arrangements are subjected to high and very high radial loads
Relatively high axial loads occur on one or both sides, in addition to high radial forces
Dynamic or static misalignments of the shaft relative to the housing, or deflections of the shaft, must be freely compensated by the bearing
High shock type loads must be supported dynamically
Locating bearings with a very high load carrying capacity are required
Two brass cages, guidance on inner ring, inner ring with two lateral retaining ribs and one central rib
1:12 tapered bore
T52BW running accuracy P5 for the inner and outer ring
Rigid central rib on inner ring
3800000 N dynamic/8150000 N static

Specifications

Bore Diameter:	480 mm
Cage Material:	Solid Brass
Closure Type:	Open
Country of Origin:	DE
Load Capacity:	8150000 N
Maximum Speed:	670 rpm
Number of Rows:	2
Outside Diameter:	700 mm
Series:	230
Temperature Rating:	-30 to 200 deg C
Width:	165 mm
