Actual Product May Vary From Image

23144 CA C3 W33 RLW

Name: 23144 CA C3 W33 RLW
Brand: Regal Rexnord
SKU: 23144 CA C3 W33 RLW
Availability: OutOfStock

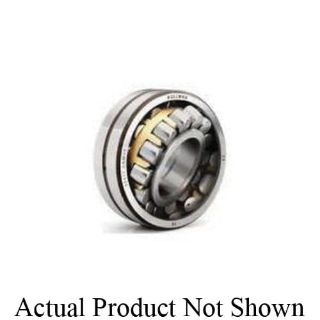

Rollway® 23144 CA C3 W33 23100 Round/Straight Bore Unmounted Spherical Roller Bearing, 220 mm Dia Bore, 370 mm OD, 2 Rows, 120 mm W, 1500 kN Dynamic/2570 kN Static

Manufacturer: Regal Rexnord

Manufacturer part number: 23144 CA C3 W33

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Rollway®

Type

Round/Straight Bore Unmounted

Description

Spherical roller bearings are designed to provide for heavy loads, shaft misalignment and deflection. They contain two symmetrical or asymmetrical rows of barrel shaped rollers which align themselves in the outer race sphered track. They are therefore able to carry very heavy radial loads and axial loads in either direction.

Rollway® Spherical Roller Bearing, Round/Straight Bore Unmounted, Series: 23100, 220 mm Bore Dia, 370 mm Outside Dia, 2 Rows, 120 mm Width, 1500 kN Dynamic/2570 kN Static, High Carbon Chromium Steel Bearing, Brass Cage, 760 rpm Grease/1000 rpm Oil Maximum, 150 deg C

Application

Aggregate and Cement, Forestry, Metals, Minerals, Mining, Oil, Gas, Packaging Machinery, Pulp, Paper and Unit Handling Industries

Features

Superior load ratings
Longer life
Smooth running
Less noise and vibrations
Low maintenance cost
Cylindrical outside ring shape
C3 radial clearance
Lubrication groove and 3 lubrication holes on the outside diameter
1-piece brass cage, roller guided between 2 inner ring flanges, cage is guided on the rollers and asymmetrical roller position

Specifications

Bearing Material:	High Carbon Chromium Steel
Bore Diameter:	220 mm
Cage Material:	Brass
Country of Origin:	CN
Load Capacity:	1500 kN Dynamic/2570 kN Static
Maximum Speed:	760 rpm Grease/1000 rpm Oil
Number of Rows:	2
Outside Diameter:	370 mm
Series:	23100
Temperature Rating:	150 deg C
Width:	120 mm
