Actual Product May Vary From Image

23226-E1A-XL-M FAG

Name: 23226-E1A-XL-M FAG
Brand: INA
SKU: 23226-E1A-XL-M FAG
Price: 1,866.63 USD
Availability: OutOfStock

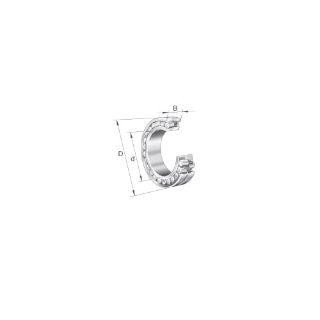

FAG 23226-E1A-XL-M 232..-E1A Cylindrical Bore Spherical Roller Bearing, 130 mm Dia Bore, 230 mm OD, 2 Rows, 80 mm W, 910000 N Dynamic/1150000 N Static Load

Manufacturer: INA

Manufacturer part number: 23226-E1A-XL-M

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$1,866.63

Qty:

Product Details

Brand Name

FAG

Type

Cylindrical Bore

Description

FAG spherical roller bearings have proved highly effective wherever high loads are present and there is a need to compensate for shaft deflections and/or misalignment of bearing seats.

FAG Spherical Roller Bearing, Cylindrical Bore, Series: 232..-E1A, 130 mm Bore Dia, 230 mm Outside Dia, 2 Rows, 80 mm W, Open Closure, 910000 N Dynamic/1150000 N Static, Steel Bearing, Brass Cage, 2850 rpm Maximum, -30 to 200 deg C, Uncoated

Application

Vibrating Screens, Continuous Casting Machines, Wind Turbines and Paper Production

Standards

Meets to DIN 635-2

Features

Higher performance bearing arrangements
Lower operating costs

Specifications

Bearing Material:	Steel
Bore Diameter:	130 mm
Cage Material:	Brass
Closure Type:	Open
Finish:	Uncoated
Load Capacity:	910000 N Dynamic/1150000 N Static
Maximum Speed:	2850 rpm
Number of Rows:	2
Outside Diameter:	230 mm
Series:	232..-E1A
Temperature Rating:	-30 to 200 deg C
Width:	80 mm
