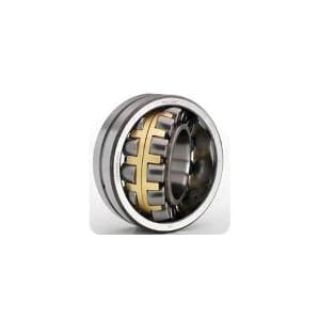

Actual Product May Vary From Image

23248 MB KC3 W33 RLW

Name: 23248 MB KC3 W33 RLW
Brand: Regal Rexnord
SKU: 23248 MB KC3 W33 RLW
Availability: OutOfStock

Rollway® 23248 MB KC3 W33 23200 Round Tapered Bore Unmounted Spherical Roller Bearing, 240 mm Dia Bore, 440 mm OD, 2 Rows, 160 mm W, 2370 kN Dynamic/3837 kN Static Load

Manufacturer: Regal Rexnord

Manufacturer part number: 23248 MB KC3 W33

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Rollway®

Type

Round Tapered Bore Unmounted

Description

Spherical roller bearings are designed to provide for heavy loads, shaft misalignment and deflection. They contain two symmetrical or asymmetrical rows of barrel shaped rollers which align themselves in the outer race sphered track. They are therefore able to carry very heavy radial loads and axial loads in either direction.

Rollway® Spherical Roller Bearing, Round Tapered Bore Unmounted, Series: 23200, 240 mm Bore Dia, 440 mm Outside Dia, 2 Rows, 160 mm W, Open Closure, 2370 kN Dynamic/3837 kN Static, High Carbon Chromium Steel Bearing, Brass Cage, 560 rpm Grease/750 rpm Oil Maximum, 150 deg C

Application

Aggregate, Cement, Forestry, Metals, Minerals, Mining, Oil, Gas, Packaging Machinery, Pulp, Paper and Unit Handling Industries

Features

Superior load ratings
Longer life
Smooth running
Less noise and vibrations
Low maintenance cost
Cylindrical outside ring shape
Lubrication groove and 3 lubrication holes on the outside diameter
C3 radial clearance
2-piece brass cage, roller guided between 2 inner ring flanges and one central rib, cage is guided on the inner ring

Specifications

Bearing Material:	High Carbon Chromium Steel
Bore Diameter:	240 mm
Cage Material:	Brass
Closure Type:	Open
Load Capacity:	2370 kN Dynamic/3837 kN Static
Maximum Speed:	560 rpm Grease/750 rpm Oil
Number of Rows:	2
Outside Diameter:	440 mm
Series:	23200
Temperature Rating:	150 deg C
Width:	160 mm
