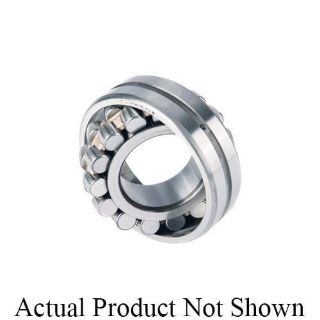

Actual Product May Vary From Image

23288YMBW507C08 TKN

Name: 23288YMBW507C08 TKN
Brand: Timken
SKU: 23288YMBW507C08 TKN
Availability: OutOfStock

Timken Spherical Roller Bearing

Manufacturer: Timken

Manufacturer part number: 23288YMBW507C08

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Timken

Description

Timken® high performance spherical roller bearings feature industry-leading load ratings and thermal reference speeds. With one of the broadest offerings in the industry, Timken® high performance spherical roller bearings handle high radial loads, as well as axial loads in both directions. Up to 2.5° of shaft misalignment can be accommodated.

Timken Spherical Roller Bearing | 440 mm 17.3 in Bore | 790 mm 31.1 in OD

Features

Enhanced surface finishes
Optimized internal geometry
Industry-leading load ratings
Nitride hardened steel cage with face slots

Specifications

Bearing Material:	Steel
Bearing Type:	Spherical Roller Bearings
Bore Type:	Straight
Cage (Retainer) Type:	Design Style - YMB
Cage Material:	Brass Cage
Component (I/R; O/R assembly):	Assembly
Dynamic Load Rating:	1820000
Fillet Radius - Inch:	0.24
Inner Race Width (in):	11.0236
Inner Race Width (mm):	280
Load Rating UOM:	LB
Lubrication Hole/Groove:	no
Manufacturer Produt Page Link:	https://www.timken.com/products/timken-engineered-bearings/spherical/
Material - Rolling Elements:	Roller
Maximum Operating RPM (Grease):	300
Maximum Operating RPM (Oil):	320
Outer Diameter (in):	31.102
Outer Diameter (mm):	790
Outer Diameter Type:	Straight
Outer Race Width (in):	11.0236
Outer Race Width (mm):	280
Overall Width (in):	11.024
Overall Width (mm):	280
Precision class:	P0
Relubricatable:	no
Rolling Element:	Spherical
Row Type:	Double
Self Aligning:	yes
Series:	232
Shaft Size (in):	17.323
Shaft Size (mm):	440
Snap Ring:	no
Static Load Rating:	2970000
