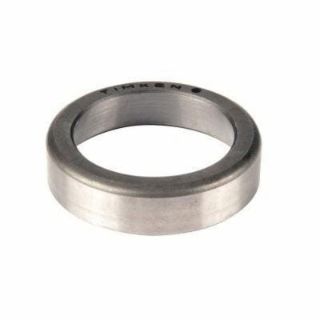

Actual Product May Vary From Image

2330 2 TKN

Name: 2330 2 TKN
Brand: Timken
SKU: 2330 2 TKN
Availability: OutOfStock

Timken® 2330-2 2300 Bearing Cup, 2.24 in OD, 13/16 in W Cup, 0.9377 in W Bearing, 0.03 in Max House Fillet Radius, 2.11 in Frontface/2.01 in Backface Dia Max House Shoulder

Manufacturer: Timken

Manufacturer part number: 2330-2

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Timken®

Description

Timken® Bearing Cup, Series: 2300, 2.24 in OD, 13/16 in Cup Width, 0.9377 in Bearing Width, 0.03 in Maximum House Fillet Radius, 2.11 in Frontface/2.01 in Backface Diameter Maximum House Shoulder, For Use With: Type TS Tapered Roller Bearings, Steel

Application

Vehicle Front Wheels, Differential and Pinion Configurations, Conveyor Rolls, Machine Tool Spindles and Trailer Wheels

Standards

ABMA Certified

Features

One-piece pressed-steel cage retains rollers on the cone and spaces them evenly

Specifications

Bearing Width:	0.9377 in
Cup Width:	13/16 in
Material:	Steel
Maximum House Fillet Radius:	0.03 in
Maximum House Shoulder Diameter:	2.11 in Frontface/2.01 in Backface
Outside Diameter:	2.24 in
Series:	2300
Suitable For Use With:	Type TS Tapered Roller Bearings
