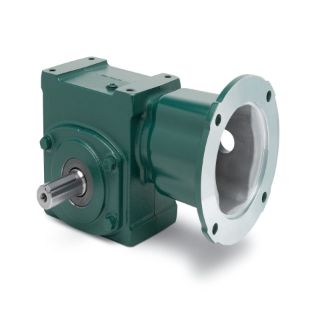

Actual Product May Vary From Image

23A25L14SL403FH DOD

Name: 23A25L14SL403FH DOD
Brand: Dodge
SKU: 23A25L14SL403FH DOD
Price: 1,563.11 USD
Availability: OutOfStock

TIGEAR-2 RED-EXT SHAFT-FLG HOLES

Manufacturer: Dodge

Manufacturer part number: 23A25L14SL403FH

Estimated dates are contingent upon manufacturer stock.

Please login to see accurate availability

$1,563.11

Qty:

Product Details

Base to Output Center Height:	2.5000
Base to Output Center Height (Unit):	INCH
Case Size:	23
Center Distance:	2.3100
Center Distance (Unit):	INCH
Center to End of Shaft Distance:	7.1500
Center to End of Shaft Distance (Unit):	INCH
Horsepower Rating Input:	1.6500
Horsepower Rating Input (Unit):	HORSEPOWER
Horsepower Rating Output:	1.3200
Horsepower Rating Output (Unit):	HORSEPOWER
Housing Material:	Cast Iron
Input Style:	3-Piece Coupled
Lubrication:	PAG, Standard Temperature
Motor Compatibility:	NEMA Motor, 140TC Frame
Mounting Bolt Pattern Length:	5.0000
Mounting Bolt Pattern Length (Unit):	INCH
Mounting Bolt Pattern Width:	2.8800
Mounting Bolt Pattern Width (Unit):	INCH
Nominal Ratio:	25.0000
Output Shaft Center to Input Motor Mounting Face Distance:	8.5800
Output Shaft Center to Input Motor Mounting Face Distance (Unit):	INCH
Output Style:	Left
Overhung Load:	1610
Overhung Load (Unit):	POUND_FORCE
Paint Type:	Standard
Rated Torque Output:	1184
Rated Torque Output (Unit):	INCH_POUND
Seal Type:	Single-Lip Contact
Shaft Diameter Output:	1.1250
Shaft Diameter Output (Unit):	INCH
Shaft Length Output:	4.1900
Shaft Length Output (Unit):	INCH
Suitable For Washdown:	No
Thermal Horsepower Rating:	2.1600
Thermal Horsepower Rating (Unit):	HORSEPOWER
