Actual Product May Vary From Image

23A30H56 DOD

Name: 23A30H56 DOD
Brand: Dodge
SKU: 23A30H56 DOD
Price: 1,691.87 USD
Availability: OutOfStock

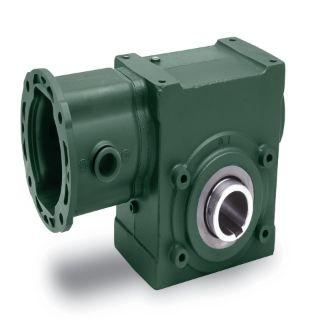

23A30H56 TIGEAR-2 REDUCER

Manufacturer: Dodge

Manufacturer part number: 23A30H56

Estimated dates are contingent upon manufacturer stock.

Please login to see accurate availability

$1,691.87

Qty:

Product Details

Base to Output Center Height:	2.5000
Base to Output Center Height (Unit):	INCH
Bore Diameter (Output):	1.4380
Bore Diameter (Output) (Unit):	INCH
Bore Length:	6.6200
Bore Length (Unit):	INCH
Case Size:	23
Center Distance:	2.3100
Center Distance (Unit):	INCH
Horsepower Rating Input:	1.4200
Horsepower Rating Input (Unit):	HORSEPOWER
Horsepower Rating Output:	1.1100
Horsepower Rating Output (Unit):	HORSEPOWER
Housing Material:	Cast Iron
Input Style:	3-Piece Coupled
Lubrication:	PAG, Standard Temperature
Motor Compatibility:	NEMA Motor, 56C Frame
Mounting Bolt Pattern Length:	5.0000
Mounting Bolt Pattern Length (Unit):	INCH
Mounting Bolt Pattern Width:	2.8800
Mounting Bolt Pattern Width (Unit):	INCH
Nominal Ratio:	30.0000
Output Shaft:	Hollow
Output Shaft Center to Input Motor Mounting Face Distance:	8.5800
Output Shaft Center to Input Motor Mounting Face Distance (Unit):	INCH
Output Style:	Hollow
Overhung Load:	1610
Overhung Load (Unit):	POUND_FORCE
Paint Type:	Standard
Rated Torque Output:	1201
Rated Torque Output (Unit):	INCH_POUND
Seal Type:	Single-Lip Contact
Suitable For Washdown:	No
Thermal Horsepower Rating:	2.0600
Thermal Horsepower Rating (Unit):	HORSEPOWER
