2/3V670 GAT

Name: 2/3V670 GAT
Brand: Gates Corporation
SKU: 2/3V670 GAT
Price: 96.95 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Gates Corporation

Manufacturer part number:

2/3V670

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$96.95 / EA

Description

Brand Name

Gates®

Type

Heavy Duty Non-Notched Raw Edge

Description

The PowerBand® construction allows multiple belts to function as a single unit, with even load distribution and each strand fitting securely in the sheave groove.

Gates® Super HC® PowerBand® V-Belt, Heavy Duty Non-Notched Raw Edge, Series: 9385, 3V Section, 3/8 in Top Width, 67 in Outside Length, 21/64 in Thickness, 2 Ribs, 3.82 in Diameter Minimum Pulley, -30 to 180 deg F, Chloroprene, Flex-Bonded Polyester Reinforced

Application

For multiple V-belt drives exposed to pulsating or heavy shock loads which can make belts whip, turn over or jump off the drive

Standards

ARPM/RMA IP-3-2/IP-3-3

Features

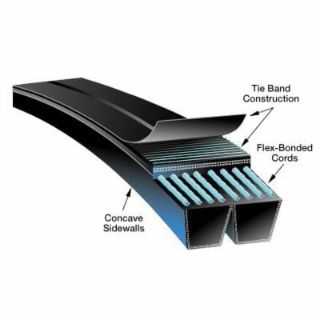

Flex-bonded cords are strongly bonded to the body of the belt resulting in equal load distribution and the absorption of bending stress without cord deterioration
The tie band assures high lateral rigidity, guiding the belt in a straight line and preventing it from coming off the drive
Concave sidewalls provide proper cord support and full contact with the sheave groove for equal loading and uniform wear

Specifications

Country of Origin:	US
Material:	Chloroprene
Minimum Pulley Diameter:	3.82 in
Number of Ribs:	2
Outside Length:	67 in
Reinforced Material:	Flex-Bonded Polyester
Section Size:	3V
Series:	9385
Temperature Range:	-30 to 180 deg F
Thickness:	21/64 in
Top Width:	3/8 in
