24052-25M WOO

Name: 24052-25M WOO
Brand: Molex/Woodhead
SKU: 24052-25M WOO
Availability: OutOfStock

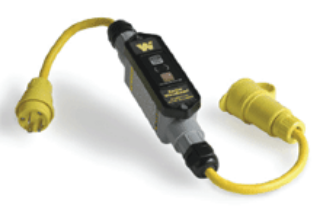

Woodhead® 24052-25M 130153 1-Phase Manual Reset Portable GFCI In-Line Cordset, (3) 12 AWG SJEOOW Conductor, 25 ft L, 120 VAC

Manufacturer: Molex/Woodhead

Manufacturer part number: 24052-25M

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Woodhead®

Type

1-Phase Manual Reset Portable

Description

Woodhead® GFCI products are designed to prevent the occurrences of serious injury or death associated with electrical accidents in construction sites and other rugged industrial settings. Portable GFCI products are equipped with an open neutral relay that meets OSHA requirements, safeguarding workers and employees against ground faults.

Woodhead® GFCI In-Line Cordset, 1-Phase Manual Reset Portable, Series: 130153, 12 AWG Conductor, 3 Conductors, SJEOOW Conductor, 25 ft Length, NEMA L6-20 Connector/Plug End Style, 0.42 in OD, 20 A, 120 VAC, Nylon Jacket, Yellow Jacket

Application

Construction Site, Electrical Service Companies, Maintenance Departments, Vending Machines, Water/Drinking Fountains and Industrial Applications

Standards

UL Listed | cUL File No. E66308

Features

Wide range of plug and connector products assures the proper fit for any application
Electromagnetic latching mechanism prevents nuisance tripping during rough service applications
Rugged, rainproof, UV stabilized enclosure resists abuse, sunlight, oils and chemicals
Open neutral sensing relay detects and prevents operation under threatening conditions
Choose manual reset functionality to protect personnel upon power return or automatic reset functionality to reset lighting and HVAC equipment upon power return
Highly visible LED indicator confirms power and fault even at a distance
Internal strain relief provides superior hold to keep cord in place at this critical juncture

Specifications

Amperage Rating:	20 A
Conductor Size:	12 AWG
Conductor Type:	SJEOOW
Country of Origin:	MX
End Style:	NEMA L6-20 Connector/Plug
Jacket Color:	Yellow
Jacket Material:	Nylon
Length:	25 ft
Number of Conductors:	3
Outside Diameter:	0.42 in
Series:	130153
Voltage Rating:	120 VAC
