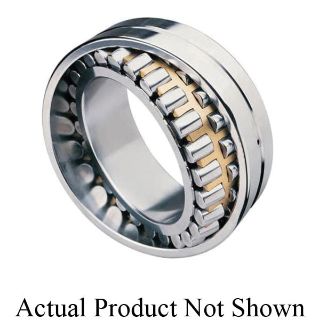

Actual Product May Vary From Image

24056 YMBW33W45A TKN

Name: 24056 YMBW33W45A TKN
Brand: Timken
SKU: 24056 YMBW33W45A TKN
Availability: OutOfStock

Timken® 24056YMBW33W45A Cylindrical Bore Type YMB Spherical Roller Bearing, 280 mm Dia Bore, 420 mm OD, 2 Rows, 140 mm W, 2420 kN Dynamic/4090 kN Static Load

Manufacturer: Timken

Manufacturer part number: 24056YMBW33W45A

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Timken®

Type

Cylindrical Bore Type YMB

Description

Misalignment, contamination, high-temperatures, even extreme speeds or critical stresses can present extra challenges when managing high radial loads. Timken® spherical roller bearings can handle it all, with innovations designed to extend bearing life and boost reliability. Timken® spherical roller bearings with hardened steel cages deliver greater fatigue strength, increased wear-resistance and tougher protection against shock and acceleration.

Timken® Spherical Roller Bearing, Cylindrical Bore Type YMB, Series: 240, 280 mm Bore Dia, 420 mm Outside Dia, 2 Rows, 140 mm W, Open Closure, 2420 kN Dynamic/4090 kN Static, Chrome Steel Bearing, Brass Cage, 800 rpm Maximum, -65 to 392 deg F, Uncoated

Application

Continuous Casters, Metal Mills, Crushers, Vibrating Screens, Excavation/Loading, Miners, Bulk Material Handling, Conveying, Oil and Gas, Mud Pumps and Pulp and Paper

Features

Run at consistently lower temperatures than same-size competitive bearings for greater reliability
Optimized internal geometries deliver the highest load and speed ratings in the industry
One-piece, inner-ring-piloted, machined-brass cage
Standard lubrication holes and groove in outer-ring
Tapped lifting holes in face of outer-ring to facilitate lifting and handling

Specifications

Bearing Material:	Chrome Steel
Bore Diameter:	280 mm
Cage Material:	Brass
Closure Type:	Open
Finish:	Uncoated
Load Capacity:	2420 kN Dynamic/4090 kN Static
Maximum Speed:	800 rpm
Number of Rows:	2
Outside Diameter:	420 mm
Series:	240
Temperature Rating:	-65 to 392 deg F
Width:	140 mm
