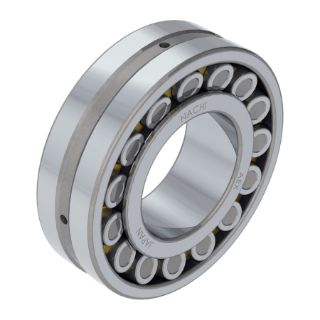

Actual Product May Vary From Image

24122 AXW33C3 NAC

Name: 24122 AXW33C3 NAC
Brand: Nachi Bearings
SKU: 24122 AXW33C3 NAC
Availability: OutOfStock

NACHI 24122AXW33C3 24000 Excel Series Spherical Roller Bearing, 110 mm Dia Bore, 180 mm OD, 2 Rows, 69 mm W, 620000 N Dynamic/654000 N Static Load

Manufacturer: Nachi Bearings

Manufacturer part number: 24122AXW33C3

Availability: Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

NACHI

Description

NACHI Spherical Roller Bearing, Series: 24000 Excel Series, 110 mm Bore, 180 mm OD, 2 Rows, 69 mm Width, 620000 N Dynamic/654000 N Static Load, Steel Bearing, Machined Brass Cage, 2700 rpm Grease/3600 rpm Oil Maximum

Application

For impulse and heavy load applications such as paper manufacturing, rolling and other large size machineries

Features

The spherical raceway of outer rings are manufactured and assembled focusing to the center of bearings
Barrel type rollers and cages are assembled with inner rings
Asymmetric spherical roller bearing

Specifications

Bearing Material:	Steel
Bore Diameter:	110 mm
Cage Material:	Machined Brass
Country of Origin:	JP
Load Capacity:	620000 N Dynamic/654000 N Static
Maximum Speed:	2700 rpm Grease/3600 rpm Oil
Number of Rows:	2
Outside Diameter:	180 mm
Series:	24000 Excel Series
Width:	69 mm
