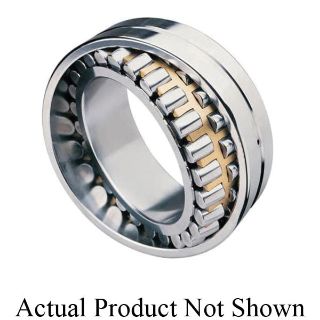

Actual Product May Vary From Image

24172KEMBW879BC7 TKN

Name: 24172KEMBW879BC7 TKN
Brand: Timken
SKU: 24172KEMBW879BC7 TKN
Availability: OutOfStock

Timken® 24172KEMBW879BC7 Tapered Bore Type EMB Spherical Roller Bearing, 360 mm Dia Bore, 600 mm OD, 2 Rows, 243 mm W, 5900000 N Dynamic/9550000 N Static Load

Manufacturer: Timken

Manufacturer part number: 24172KEMBW879BC7

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Timken®

Type

Tapered Bore Type EMB

Description

Misalignment, contamination, high-temperatures, even extreme speeds or critical stresses can present extra challenges when managing high radial loads. Timken® spherical roller bearings can handle it all, with innovations designed to extend bearing life and boost reliability. Timken® spherical roller bearings with hardened steel cages deliver greater fatigue strength, increased wear-resistance and tougher protection against shock and acceleration.

Timken® Spherical Roller Bearing, Tapered Bore Type EMB, Series: 241, 360 mm Bore Dia, 600 mm Outside Dia, 2 Rows, 243 mm Width, 5900000 N Dynamic/9550000 N Static, Brass Cage, 320 rpm Grease/340 rpm Oil Maximum, -65 to 392 deg F

Application

Continuous Casters, Metal Mills, Crushers, Vibrating Screens, Excavation/Loading, Miners, Bulk Material Handling, Conveying, Oil and Gas, Mud Pumps and Pulp and Paper

Features

Run at consistently lower temperatures than same-size competitive bearings for greater reliability
Optimized internal geometries deliver the highest load and speed ratings in the industry
Spherical bearings are designed to manage high radial loads even when misalignment, poor lubrication, contamination, extreme speeds or critical application stresses are present
High-performance one-piece inner-ring, piloted, machined-brass cage
C7 radial internal clearance

Specifications

Bore Diameter:	360 mm
Cage Material:	Brass
Load Capacity:	5900000 N Dynamic/9550000 N Static
Maximum Speed:	320 rpm Grease/340 rpm Oil
Number of Rows:	2
Outside Diameter:	600 mm
Series:	241
Temperature Rating:	-65 to 392 deg F
Width:	243 mm
