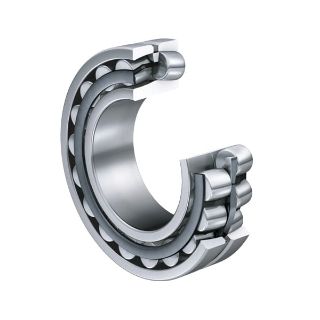

Actual Product May Vary From Image

24176-E1-C3 FAG

Name: 24176-E1-C3 FAG
Brand: INA
SKU: 24176-E1-C3 FAG
Availability: OutOfStock

FAG 24176-E1-C3 Cylindrical Bore Spherical Roller Bearing, 380 mm Dia Bore, 620 mm OD, 2 Rows, 243 mm W, 9700000 N Load

Manufacturer: INA

Manufacturer part number: 24176-E1-C3

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

FAG

Type

Cylindrical Bore

Description

Spherical roller bearings are a special rolling bearing design whose inner ring runs inside the outer ring on two rows of rollers. The bearings have an angular adjustment of up to 2 deg and are not only designed for high load carrying capacity but can also compensate misalignments.

FAG Spherical Roller Bearing, Cylindrical Bore, Series: 241-E1, 380 mm Bore, 620 mm OD, 2 Rows, 243 mm Width, Open Closure, 9700000 N Load, Sheet Steel Cage, 670 rpm Maximum, -30 to 200 deg C

Application

Vibrating Screen, Continuous Casting Machines, Wind Turbine, Paper Production, Industrial Gearboxes and Marine Propulsion Systems

Features

Spherical roller bearings are suitable where rearing arrangements are subjected to high and very high radial loads
Relatively high axial loads occur on one or both sides, in addition to high radial forces
Dynamic or static misalignments of the shaft relative to the housing, or deflections of the shaft, must be freely compensated by the bearing
High shock type loads must be supported dynamically
Locating bearings with a very high load carrying capacity are required
C3 radial internal clearance
5800000 N dynamic/9700000 N static

Specifications

Bore Diameter:	380 mm
Cage Material:	Sheet Steel
Closure Type:	Open
Country of Origin:	DE
Load Capacity:	9700000 N
Maximum Speed:	670 rpm
Number of Rows:	2
Outside Diameter:	620 mm
Series:	241-E1
Temperature Rating:	-30 to 200 deg C
Width:	243 mm
