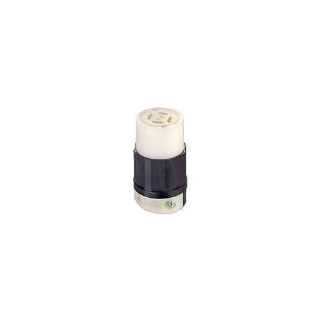

Picture of 2433 LEV
Actual Product May Vary From Image

2433 LEV

Leviton® Black & White® 2433 3-Phase Grounding Cable Mount Locking Connector, 480 VAC, 20 A, 3 Poles, 4 Wires, Black/White
Manufacturer: Leviton Manufacturing
Manufacturer part number: 2433
Availability: Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$77.93

Product Details

Brand Name

Leviton®

Type

3-Phase Grounding

Alternate Supplier #

Grainger - 5HYP8

Description

Leviton® industry leading locking devices, such as our Black & White® line of industrial grade plugs and connectors and receptacles, offer superior performance, long lasting reliability and other features that are backed by a lifetime warranty.
Leviton® Black & White® Locking Connector, 3-Phase Grounding Cable Mount, 480 VAC, 20 A, 5 hp, 3 Poles, 4 Wires, NEMA L16-20R, Industrial Grade, 0.595 to 0.895 in Cord Dia, -40 to 60 deg C, Screw Terminal, Nylon, Black/White, 28 in Dia x 3.53 in H

Application

Industrial Applications

Standards

ANSI C73 | CSA C22.2 No. 42/File No. LR406 Certified | NEMA WD-1/WD-6 | NOM 057 Certified | UL 498 | File No. E13393 | Federal Specification WC-596 | File No. E13393 Listed

Specifications

Amperage Rating:20 A
Color:Black/White
Cord Diameter:0.56 to 0.775 in
Country of Origin:US
Dimensions:28 in Dia x 3.53 in H
Grade:Industrial
Horsepower:5 hp
Material:Nylon
NEMA Rating:NEMA L16-20R
Number of Poles:3
Number of Wires:4
Temperature Rating:-40 to 60 deg C
Terminal Type:Screw
Voltage Rating:480 VAC
