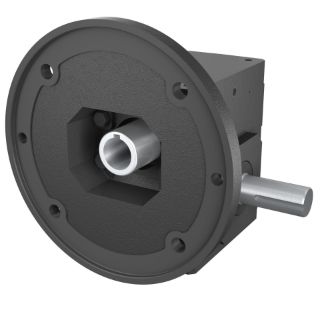

Actual Product May Vary From Image

244 7.5/1 C WR 182TC HUB

Name: 244 7.5/1 C WR 182TC HUB
SKU: 244 7.5/1 C WR 182TC HUB
Availability: OutOfStock

Hub City® PowerCubeX® 0230-04772 W240PCX Right Angle Single Reduction Style C Worm Gear Reducer, C-Face Quill Input, Shaft Output, 4.53 hp Input, 7.5:1 Gear, 233 rpm Maximum Output, 1046 in-lb Output Torque Rating

Manufacturer part number: 0230-04772

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Hub City®

Type

Right Angle Single Reduction Style C

Description

Hub City® PowerCubeX® Worm Gear Reducer, Right Angle Single Reduction Style C, Series: W240PCX, 7.5:1 Gear Ratio, 4.53 hp Input, C-Face Quill Input, Shaft Output, 1-1/8 in Dia Input, 1.125 in Dia x 2.66 in L Output, 233 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 1046 in-lb Output, 2.38 in Centre Distance, 1/4 x 1/8 in Output Keyway, 85.4 % Efficiency, Conventional Oil Lubrication, Cast Iron

Application

Conveyors and Conveying Equipment, Printing Equipment, Agriculture, Food Processing, Bottling Equipment, Grain Handling, Packaging Machinery, Cement and Asphalt

Standards

AGMA Class 1

Features

Modular design
Universal mounting dimensions
Increased thermal capacity and increased efficiency
Alloy shafting
FKM seals

Specifications

Centre Distance:	2.38 in
Efficiency:	85.4 %
Gear Ratio:	7.5:1
Horsepower:	4.53 hp Input
Input Maximum Speed:	1750 rpm
Input Size:	1-1/8 in Dia
Input Type:	C-Face Quill
Keyway Size:	1/4 x 1/8 in Output
Lubrication Type:	Conventional Oil
Material:	Cast Iron
Output Maximum Speed:	233 rpm
Output Size:	1.125 in Dia x 2.66 in L
Output Type:	Shaft
Series:	W240PCX
Torque Rating:	1046 in-lb Output
