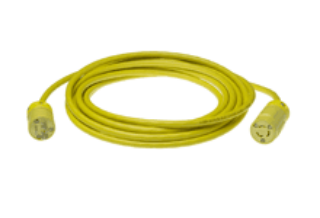

Actual Product May Vary From Image

2447A163 WOO

Name: 2447A163 WOO
Brand: Molex/Woodhead
SKU: 2447A163 WOO
Availability: OutOfStock

Woodhead® Super-Safeway™ 2447A163 130143 2-Pole 3-Wire Type SOOW Male to Female Cordset, 15 A at 125 VAC, 25 ft L Cord, 3 Conductors

Manufacturer: Molex/Woodhead

Manufacturer part number: 2447A163

Availability: Expected Leadtime 12 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Woodhead®

Type

2-Pole 3-Wire Type SOOW Male to Female

Description

Woodhead® Super-Safeway™ products are heavy duty industrial wiring devices designed for abusive conditions and dependable performance for applications that demand the unmatched durability that rubber exclusively delivers. These rubberized industrial devices are the only wiring devices made of NEo-TEX® Paracril OZO rubber, a rubber construction that yields ultimate performance within a wide temperature range, around many oils and chemicals and abrasive conditions.

Woodhead® Super-Safeway™ Cordset, 2-Pole 3-Wire Type SOOW Male to Female, Series: 130143, 15 A at 125 VAC, 25 ft Cord, 3 Conductors, 16 AWG Conductor, NEMA L5-15R Single Receptacle, NEMA L5-15P Plug, -40 to 75 deg C, NEoTEX Paracril OZO Rubber, Yellow

Application

Aircraft Construction, Airports, Construction Site, Facility Maintenance, Petrochemical and Heavy Duty Industrial Applications

Standards

UL File No. E38085 | CSA File No. LR6837

Features

NEo-TEX® Paracril OZO rubber body yields the best performance for abrasion, chemical exposure and temperature extremes within the Super-Safeway™ offering
Color coded 1/4 in terminal screws preset in open position, ready to wire
Wire screw terminals are tri-drive to be used with straight blade, Phillips and square drive screw drivers
Floating blade construction provides self-alignment and a better mechanical and electrical connection minimizing wear and heat generation
Transparent wiring guide to verify all wire strands are in place before securing wire
Captive, tri-drive head, stainless steel, speed screw provides easy assembly and long life
2-piece cord clamp strain relief includes tri-drive screws to firmly secure the cord

Specifications

Color:	Yellow
Conductor Size:	16 AWG
Cord Length:	25 ft
Country of Origin:	MX
Electrical Ratings:	15 A at 125 VAC
Material:	NEoTEX Paracril OZO Rubber
Number of Conductors:	3
Plug Type:	NEMA L5-15P
Receptacle Type:	NEMA L5-15R Single
Series:	130143
Temperature Rating:	-40 to 75 deg C
