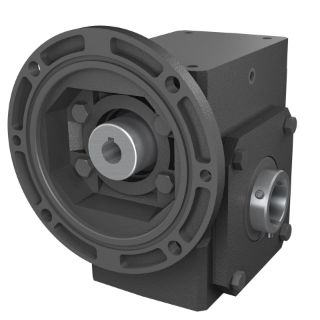

Actual Product May Vary From Image

245L 60/1 B WR 56C 1.000 HUB

Name: 245L 60/1 B WR 56C 1.000 HUB
SKU: 245L 60/1 B WR 56C 1.000 HUB
Availability: OutOfStock

Hub City® PowerCubeX® 0230-06304 W240LPCX Right Angle Single Reduction Style B Worm Gear Reducer, C-Face Quill Input, Hollow Bore Output, 0.79 hp Input, 60:1 Gear, 29.2 rpm Maximum Output, 1222 in-lb Output Torque Rating

Manufacturer part number: 0230-06304

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Hub City®

Type

Right Angle Single Reduction Style B

Description

Hub City® PowerCubeX® Worm Gear Reducer, Right Angle Single Reduction Style B, Series: W240LPCX, 60:1 Gear Ratio, 0.79 hp Input, C-Face Quill Input, Hollow Bore Output, 5/8 in Dia Input, 1 in Dia Output, 29.2 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 1222 in-lb Output, 2.38 in Centre Distance, 1/4 x 1/8 in Output Keyway, 71.8 % Efficiency, PAG Synthetic Oil Lubrication, Cast Iron

Application

Conveyors and Conveying Equipment, Printing Equipment, Agriculture, Food Processing, Bottling Equipment, Grain Handling, Packaging Machinery, Cement and Asphalt

Standards

AGMA Class 1

Features

Modular design
Universal mounting dimensions
Increased thermal capacity and increased efficiency
Alloy shafting
FKM seals
Factory lubricated with food-grade synthetic lubricant - USDA class H1 approved

Specifications

Centre Distance:	2.38 in
Efficiency:	71.8 %
Gear Ratio:	60:1
Horsepower:	0.79 hp Input
Input Maximum Speed:	1750 rpm
Input Size:	5/8 in Dia
Input Type:	C-Face Quill
Keyway Size:	1/4 x 1/8 in Output
Lubrication Type:	PAG Synthetic Oil
Material:	Cast Iron
Output Maximum Speed:	29.2 rpm
Output Size:	1 in Dia
Output Type:	Hollow Bore
Series:	W240LPCX
Torque Rating:	1222 in-lb Output
