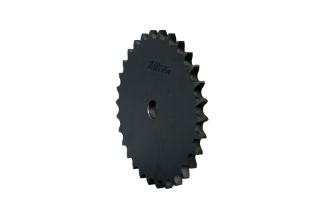

Actual Product May Vary From Image

24A68 MSG

Name: 24A68 MSG
Brand: Martin Sprocket & Gear
SKU: 24A68 MSG
Availability: OutOfStock

SPK ROLLER A MET

Manufacturer: Martin Sprocket & Gear

Manufacturer part number: 24A68

Availability: Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Description

Metric A Plates are flat sprockets with no hub extension on either side. They can be altered for your application with bolt holes, custom bores, hardened teeth or special hubs welded to them.

Features

Tolerances meet or exceed ISO standards. Manufactured of high carbon steel. Precise machining and processes ensure consistent finish and high quality. Bores are concentric to pitch line, minimizing run out. Chain rows are parallel and precisely spaced to increase longevity of sprocket and chain

Specifications

Bore Type:	Reboreable
Caliper Diameter:	799.5707
Chain / Sprocket Number:	24B-1
Dimensions UOM:	MM
Hub Type:	A
Length Thru Bore:	24.13
Material:	Steel
Max Bore Size:	788.5944
Measuring Pin Diameter:	25.4
Min Bore Size:	40.0304
Number of Teeth:	68
Number of Teeth Rows / Strands:	1
Outside Diameter:	847.1957
Pitch Diameter:	824.9707
Root Diameter:	799.5707
Single Strand Tooth Thickness:	24.13
Storage Dimension Height:	0.95
Storage Dimension Length:	33.3542
Storage Dimension Width:	33.3542
Width Across Teeth / Rows:	24.13
