24CH2207 MSG

Name: 24CH2207 MSG
Brand: Martin Sprocket & Gear
SKU: 24CH2207 MSG
Availability: OutOfStock

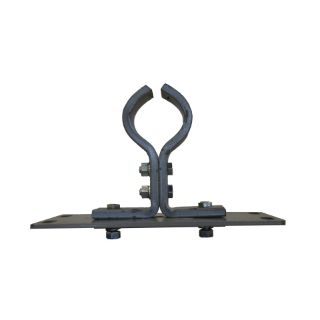

Martin 24CH2207 Conveyor Hanger, 220 Style, 24 in Dia Conveyor, 3-7/16 in Coupling

Manufacturer: Martin Sprocket & Gear

Manufacturer part number: 24CH2207

Availability: Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Martin

Description

No. 220 hangers are designed for mount on top of the trough flanges and may be used where dust-tight or weather proof operation is not required. This type hanger allows for minimum obstruction of material flow in high capacity conveyors. Available with friction type bearing.

Martin Conveyor Hanger, 220 Style, 24 in Conveyor Diameter, 3-7/16 in Coupling, 3-1/2 in Mounting Hole Center, 5/8 x 1-3/4 in Bolt, 30-1/2 in Top Frame Length, 6 in Top Frame Width, 5/8 in Top Frame Thickness, 4 Mounting Bolts, 11/16 x 1-11/16 in Slot, Steel

Standards

CEMA Standard

Features

Laser cut flat pieces to ensure consistent finish and high quality

Specifications

Bolt Size:	5/8 x 1-3/4 in
Conveyor Diameter:	24 in
Coupling Size:	3-7/16 in
Material:	Steel
Mounting Hole Center:	3-1/2 in
Number of Mounting Bolts:	4
Slot Size:	11/16 x 1-11/16 in
Style:	220
Top Frame Length:	30-1/2 in
Top Frame Thickness:	5/8 in
Top Frame Width:	6 in
