24CH607 MSG

Name: 24CH607 MSG
Brand: Martin Sprocket & Gear
SKU: 24CH607 MSG
Availability: OutOfStock

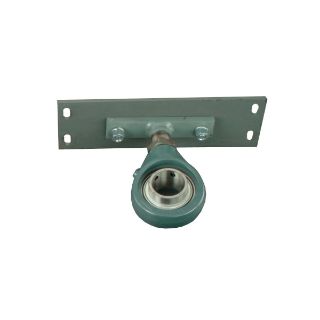

Martin 24CH607 Conveyor Hanger, 60 Style, 24 in Dia Conveyor, 3-7/16 in Coupling

Manufacturer: Martin Sprocket & Gear

Manufacturer part number: 24CH607

Availability: Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Martin

Description

No. 60 hangers are furnished with a heavy duty, permanently lubricated and sealed, self-aligning ball bearing which permits temperatures up to 245 deg F and will allow for up to 4 deg shaft misalignments. This hanger is mounted on top of the trough flanges. Grease fitting can be furnished if specified.

Martin Conveyor Hanger, 60 Style, 24 in Conveyor Diameter, 3-7/16 in Coupling, 3-1/2 in Mounting Hole Center, 5/8 x 3 in Bolt, 30-1/2 in Top Frame Length, 6 in Top Frame Width, 5/8 in Top Frame Thickness, 2 Mounting Bolts, 11/16 x 1-11/16 in Slot, Steel

Standards

CEMA Standard

Features

Laser cut flat pieces to ensure consistent finish and high quality

Specifications

Bolt Size:	5/8 x 3 in
Conveyor Diameter:	24 in
Coupling Size:	3-7/16 in
Material:	Steel
Mounting Hole Center:	3-1/2 in
Number of Mounting Bolts:	2
Slot Size:	11/16 x 1-11/16 in
Style:	60
Top Frame Length:	30-1/2 in
Top Frame Thickness:	5/8 in
Top Frame Width:	6 in
