Actual Product May Vary From Image

24TDMEJ31.5 BSF

Name: 24TDMEJ31.5 BSF
Brand: Bussmann
SKU: 24TDMEJ31.5 BSF
Availability: OutOfStock

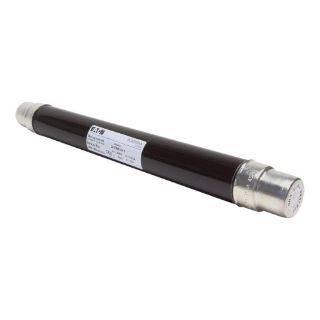

Bussmann 24TDMEJ31.5 TDMEJ Back-Up DIN Dimensioned Medium Voltage Type T Current Limiting IEC Fuse, 31.5 A, 24 kV, 50 kA Interrupt, Class: Back-Up, Cartridge Body

Manufacturer: Bussmann

Manufacturer part number: 24TDMEJ31.5

Availability: Expected Leadtime 30 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Bussmann

Type

Back-Up DIN Dimensioned Medium Voltage Type T

Description

Eaton's Bussmann medium voltage DIN full range and back-up fuses offer an excellent transformer protection. They are available with or without striker. They comply to the dimensional standard DIN 43625, VDE 0670 and IEC 60282-1. They are suitable for indoor and outdoor use.

Bussmann Current Limiting IEC Fuse, Back-Up DIN Dimensioned Medium Voltage Type T, Series: TDMEJ, Indicating/Non-Indicating: Non-Indicating, 31.5 A, 24 kV, 50 kA Interrupt, Class: Back-Up, Body Type: Cartridge, Brown, 2 in Dia x 17.4 in L Body Size

Application

Medium Voltage IEC Designed Equipment, Primary Side Transformer Protection, Fuse Switch Combination Unit, Fuse Bases and Fuse Switches

Standards

DIN 43625 | VDE 0670 Part 4 | VDE 0670 Part 402 | IEC 60282-1 (2005)

Features

DIN dimensioned for retrofitting in existing hardware
Open fuse indicator for ease in troubleshooting
Designed for use in IEC equipment

Specifications

Amperage Rating:	31.5 A
Body Size:	2 in Dia x 17.4 in L
Body Type:	Cartridge
Class:	Back-Up
Color:	Brown
Indicating/Non-Indicating:	Non-Indicating
Interrupt Rating:	50 kA
Series:	TDMEJ
Voltage Rating:	24 kV
