Actual Product May Vary From Image

24TFMEJ100 BSF

Name: 24TFMEJ100 BSF
Brand: Bussmann
SKU: 24TFMEJ100 BSF
Availability: OutOfStock

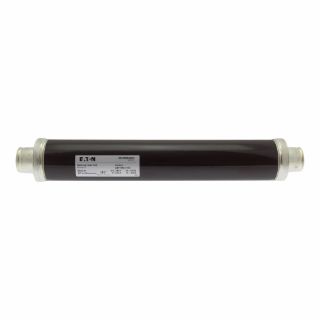

Bussmann 24TFMEJ100 DIN Dimensioned Medium Voltage Euro-IEC Fuse, 100 A, 24 kV, 63 kA Interrupt

Manufacturer: Bussmann

Manufacturer part number: 24TFMEJ100

Availability: Expected Leadtime 54 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Bussmann

Type

DIN Dimensioned Medium Voltage

Description

Eaton's Bussmann medium voltage DIN full range and back-up fuses offer an excellent transformer protection. They are available with or without striker. They comply to the dimensional standard DIN 43625, VDE 0670 and IEC 60282-1. They are suitable for indoor and outdoor use.

Bussmann Euro-IEC Fuse, DIN Dimensioned Medium Voltage, Indicating/Non-Indicating: Indicating, 100 A, 24 kV, 63 kA Interrupt, Brown, 80 mm Dia x 80 mm H Body Size

Application

For medium voltage IEC designed equipment

Standards

UL Listed | VDE Approved

Features

Special Features: Back-up, Transformer protection, Indoor or outdoor use
Package Type: Standard
Breaking Capacity: 63 kA
Barrel Type: Single
Weight: 4.2 kg
Construction: Bolt-On
Pre Arc (I2T): 9.4 x 104

Specifications

Amperage Rating:	100 A
Body Size:	80 mm Dia x 80 mm H
Color:	Brown
Indicating/Non-Indicating:	Indicating
Interrupt Rating:	63 kA
Voltage Rating:	24 kV
