25 MM T1 CTL THO

Name: 25 MM T1 CTL THO
Brand: Thomson Industries
SKU: 25 MM T1 CTL THO
Price: 7.85 USD
Availability: OutOfStock

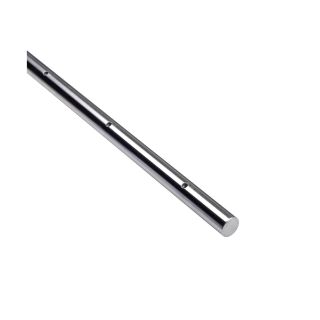

Thomson® 60 Case® Precision LinearRace® 25 MM T1 CTL Standard Shaft, Class MM (H6) Class, 4521 mm L, Carbon Steel

Manufacturer: Thomson Industries

Manufacturer part number: 25 MM T1 CTL

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$7.85

Qty:

Product Details

Brand Name

Thomson®

Type

Standard

Description

Thomson® 60 Case® LinearRace® shafting is manufactured to the highest quality standards in an ISO 9000:2000 registered facility. Techniques are continuously upgraded with proprietary know-how gained from over 53 years of linear bearing design and manufacture. Using 60 Case® LinearRace® shafting with Thomson® Ball Bushing® bearings ensures optimal bearing performance and travel life.

Thomson® 60 Case® Precision LinearRace® Shaft, Standard, 4521 mm Length, 25 mm Shaft Dia, Class: Class MM (H6), 24.99 mm Dia Tolerance, 2.03 mm Hardness Depth, Carbon Steel

Features

Diameter range between 3/16 and 4 in
Case hardness 60 HRC minimum
Roundness within 0.000080 in
Centerless ground for an industry leading catalogued surface finish of 8 Ra maximum
Straight within 0.001 in/ft cumulative when shipped from the factory
Predrilled shafting designed for open bearings
Hardened and ground, cut to length

Specifications

Class:	Class MM (H6)
Country of Origin:	MX
Diameter Tolerance:	24.99 mm
Hardness Depth:	2.03 mm
Length:	4521 mm
Material:	Carbon Steel
Shaft Diameter:	25 mm
