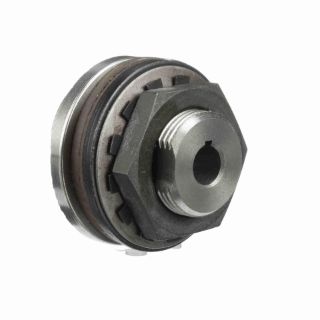

250A-2 TL 5/8 FB MOR

The Morse® torque limiter is a protective device that limits torque transmitted in a drive system by slipping when the torque demand exceeds a preset value as a result of shock loads, overloads or machine jams. It automatically re-engages when the overload torque has passed, no resetting is required. The Morse® torque limiter helps prevent machine damage and eliminates costly downtime. Using spring loaded friction surfaces for its operation, the Morse® torque limiter presets slip torque by adjustment of the spring force. This device can be used with a sprocket, gear, sheave or flange plate as the center member that is clamped between two friction facings.

Morse® Torque Limiter, Series: TL Series, Straight Bore, 5/8 in Bore Dia, 2-1/2 in Outside Dia, 1-7/8 in Overall Length, 10 to 40 in-lb, 1000 rpm Maximum, 25 Stock/MTO (NO. 35 Chain), 20 Stock/MTO (NO. 40 Chain), 20 Stock/MTO (NO. 41 Chain), 16 Stock/MTO (NO. 50 Chain) Minimum Sprocket Teeth
