250NHG1BI BSF

Name: 250NHG1BI BSF
Brand: Bussmann
SKU: 250NHG1BI BSF
Availability: OutOfStock

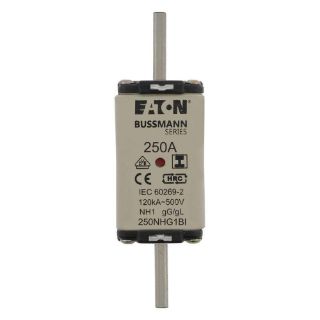

Bussmann 250NHG1BI Size 1 Dual Indicator Low Voltage NH Fuse Link, 500 V, 250 A, For Use With Class C/gG/gL Fuse, Ceramic

Manufacturer: Bussmann

Manufacturer part number: 250NHG1BI

Availability: Expected Leadtime 30 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Bussmann

Type

Size 1 Dual Indicator Low Voltage

Description

Eaton's Bussmann series low voltage NH fuses range from 2 amps to 1250 amps and provide world class leading performance and reliability. The range is fully compliant with IEC 60269-1, 60269-2, VDE 0636-2 third party approval and DIN 43620. Incorporating a dual indicator design (front and top) NH fuses are able to give both local visual indication and remote (via microswitch) fuse status. Eaton's Bussmann series NH fuses are available in the following operating classes gg, gff and am.

Bussmann NH Fuse Link, Size 1 Dual Indicator Low Voltage, Series: NHG, 500 V, 250 A, 45 to 62 Hz, Rated Breaking Capacity: 120 kAIC, Holder Mount, For Use With: Class C/gG/gL Fuse, Ceramic

Application

Electrical Assemblies, Panels, EOEMs, Control Panels for Machines, Panel Builders, Industrial Facilities and Factories, Power Distribution and Control, Safety and Security Systems

Standards

RoHS Compliant

Specifications

Amperage Rating:	250 A
Frequency Rating:	45 to 62 Hz
Material:	Ceramic
Mounting Type:	Holder
Rated Breaking Capacity:	120 kAIC
Series:	NHG
Suitable For Use With:	Class C/gG/gL Fuse
Voltage Rating:	500 V
