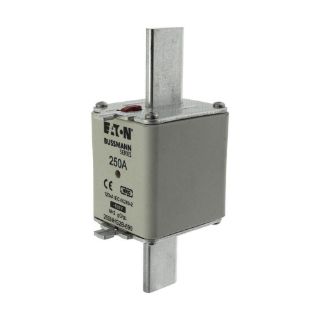

Actual Product May Vary From Image

250NHG2B-690 BSF

Name: 250NHG2B-690 BSF
Brand: Bussmann
SKU: 250NHG2B-690 BSF
Availability: OutOfStock

Bussmann 250NHG2B-690 Dual Indicator Low Voltage Size 2 NH Fuse Link, 690 VAC, 250 A, For Use With NH Series Photovoltaic Fuse, Class C gG/gL Fuse, Ceramic

Manufacturer: Bussmann

Manufacturer part number: 250NHG2B-690

Availability: Expected Leadtime 31 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Bussmann

Type

Size 2 Dual Indicator Low Voltage

Description

Eaton's Bussmann series low voltage NH fuses range from 2 amps to 1250 amps and provide world class leading performance and reliability. The range is fully compliant with IEC 60269-1, 60269-2, VDE 0636-2 third party approval and DIN 43620. Incorporating a dual indicator design (front and top) NH fuses are able to give both local visual indication and remote (via microswitch) fuse status. Eaton's Bussmann series NH fuses are available in the following operating classes gg, gff and am.

Bussmann NH Fuse Link, Dual Indicator Low Voltage Size 2, Series: NH Series, 690 VAC, 250 A, 45 to 62 Hz Frequency, Rated Breaking Capacity: 120 kA, Holder Mounting, For Use With: NH Series Photovoltaic Fuse, Class C gG/gL Fuse, Ceramic, 150 mm L x 54 mm W x 71 mm H Dimensions

Application

Electrical Assemblies, Panels and EOEMs, Control Panels for Machines, Aftermarket, Panel Builders, Industrial Facilities and Factories, Power Distribution and Control, Safety and Security Systems Applications

Standards

Features

Eaton's Bussmann® series 690 VAC NH square bodied industrial fuse links are suitable for a wide variety of applications
Reliable dual indicator system
Low temperature rise
Live gripping lugs

Specifications

Amperage Rating:	250 A
Dimensions:	150 mm L x 54 mm W x 71 mm H
Frequency Rating:	45 to 62 Hz
Material:	Ceramic
Mounting Type:	Holder
Rated Breaking Capacity:	120 kA
Series:	NH Series
Suitable For Use With:	NH Series Photovoltaic Fuse, Class C gG/gL Fuse
Voltage Rating:	690 VAC
