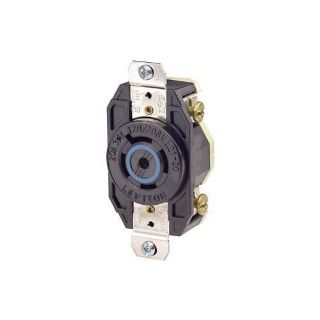

Picture of 2510 LEV
Actual Product May Vary From Image

2510 LEV

Leviton® V-0-Max™ 2510 3-Phase Y Grounding Locking Receptacle, 120/208 VAC, 20 A, 4 Poles, 5 Wires, Black
Manufacturer: Leviton Manufacturing
Manufacturer part number: 2510
Availability: Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$78.36

Product Details

Brand Name

Leviton®

Type

3-Phase Grounding

Alternate Supplier #

Grainger - 5HYR2

Description

Leviton® industrial grade locking devices are built to provide unparalleled quality and superior performance in the most severe industrial settings. Leviton® combines the best materials available with superior production standards to produce a broad selection of locking devices of unmatched flexibility and dependability.
Leviton® V-0-Max™ Locking Receptacle, 3-Phase Y Grounding, 120/208 VAC, 20 A, 2 hp, 4 Pole, 5 Wires, NEMA L21-20R NEMA Rating, Industrial Grade, -40 to 60 deg C, Back/Side Wire Terminal, Polybutylene Terephthalate, Black, 3.63 in H x 1.69 in W x 1.31 in D Dimensions

Application

Commercial Applications

Standards

ANSI C-73 | NEMA WD1/WD6 | NOM 057 | CSA C22.2 No. 42 | Federal Specification W-C-596 | UL 498 | UL94 V-0/V-2 Flammability Rating

Features

  • Box mounting
  • 14 to 8 AWG terminal accommodation
  • Flush mount

Specifications

Amperage Rating:20 A
Color:Black
Country of Origin:MX
Dimensions:3.63 in H x 1.69 in W x 1.31 in D
Grade:Commercial
Horsepower:2 hp
Material:PBT
NEMA Rating:NEMA L21-20R
Number of Poles:4
Number of Wires:5
Temperature Rating:-40 to 60 deg C
Terminal Type:Back/Side Wire
Voltage Rating:120/208 VAC
