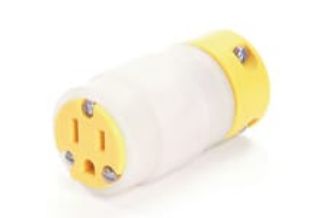

Actual Product May Vary From Image

2547GCM WOO

Name: 2547GCM WOO
Brand: Molex/Woodhead
SKU: 2547GCM WOO
Availability: OutOfStock

Woodhead® 2547GCM 130141 Female Ground Fault Heavy Duty Locking Blade Connector, 125 VAC, 15 A, 2 Poles, 3 Wires, Yellow

Manufacturer: Molex/Woodhead

Manufacturer part number: 2547GCM

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Woodhead®

Type

Female Ground Fault Heavy Duty

Description

Woodhead® Super-Safeway™ products are heavy duty industrial wiring devices designed for abusive conditions and dependable performance for applications that demand the unmatched durability that rubber exclusively delivers. These rubberized industrial devices are the only wiring devices made of NEo-TEX® Paracril OZO rubber, a rubber construction that yields ultimate performance within a wide temperature range, around many oils and chemicals and abrasive conditions.

Woodhead® Locking Blade Connector, Female Ground Fault Heavy Duty, Series: 130141, 125 VAC, 15 A, 2 Pole, 3 Wires, NEMA L5-15C NEMA Rating, Industrial Grade, 0.335 to 0.64 in Diameter Cord, -40 to 75 deg C, Screw Terminal, NEoTEX Paracril OZO Rubber, Yellow, 1.66 in Dia x 2.99 in L Dimensions

Application

Aircraft Construction, Airports, Construction Site, Facility Maintenance, Petrochemical, Pulp and Paper Manufacturing Applications

Standards

UL File No. E10176 | CSA File No. LR6837

Features

NEo-TEX® Paracril OZO rubber body yields the best performance for abrasion, chemical exposure and temperature extremes within the Super-Safeway™ offering
Color coded 1/4 in terminal screws preset in open position, ready to wire
Wire screw terminals are tri-drive to be used with straight blade, Phillips and square drive screw drivers
Floating blade construction provides self-alignment and a better mechanical and electrical connection minimizing wear and heat generation
Transparent wiring guide to verify all wire strands are in place before securing wire
Captive, tri-drive head, stainless steel, speed screw provides easy assembly and long life
2-piece cord clamp strain relief includes tri-drive screws to firmly secure the cord
Rugged nylon bodies within the Safeway™ offering provide exceptional durability and performance
Ground continuity monitor lights indicating a good ground is present
Without flip coverplate

Specifications

Amperage Rating:	15 A
Color:	Yellow
Cord Diameter:	0.335 to 0.64 in
Country of Origin:	MX
Dimensions:	1.66 in Dia x 2.99 in L
Grade:	Industrial
Material:	NEoTEX Paracril OZO Rubber
NEMA Rating:	NEMA L5-15C
Number of Poles:	2
Number of Wires:	3
Series:	130141
Temperature Rating:	-40 to 75 deg C
Terminal Type:	Screw
Voltage Rating:	125 VAC
