Actual Product May Vary From Image

257F RAC

Name: 257F RAC
Brand: Raco Industries
SKU: 257F RAC
Price: 12.32 USD
Availability: InStock

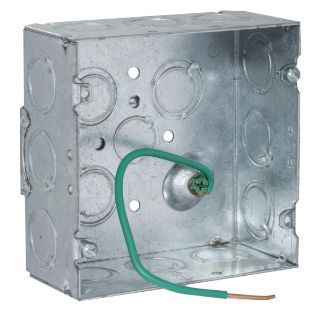

RACO® 257F Square Box With Conduit Knockout, Steel, 42 cu-in Capacity, 16 Knockouts, 4-11/16 in H x 4-11/16 in W x 2-1/8 in D

Manufacturer: Raco Industries

Manufacturer part number: 257F

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
77	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$12.32

Qty:

Product Details

Brand Name

RACO®

Description

RACO® is the United States' leading manufacturer of steel electrical boxes and covers. RACO® manufactures and/or sells steel and plastic boxes used at outlets, switch locations and junction points. RACO® also offers a broad line of metallic fittings, including rigid plastic conduit fittings, EMT (thin wall) fittings and liquid tight conduit fittings.

RACO® Square Box, Series: `, 16 Knockouts, 1/2 in, 3/4 in Knockout, Squared, 42 cu-in, Steel, Pre-Galvanized, Silver, 4-11/16 in H x 4-11/16 in W x 2-1/8 in D

Application

For wide variety of industrial where larger sized conductors or wiring devices are needed and more volume is required and electrical applications

Standards

ARRA Compliant | Buy American Act Compliant | UL File No. E195978

Features

Welded construction
BOX-LOC (MS) bracket box is a snap to install
Combination screw heads provide for faster installation
TKO knockouts allow for design and installation flexibility
UBS support - welded to box, preset bend points to work with wall thickness 2-1/2 to 6 in
For use without a bonding jumper in circuits up to 600 volts
Raised ground provision in back of box
Universal box stabilizer bracket
Place the bracket on the open side of the stud first
Slots in the bracket engage the lip of the stud and actually crimp it as you press the bracket on the stud, quickly locking it in place

Includes

Universal Box Stabilizer Bracket and 12 AWG 8 in Solid Copper Pigtail

Specifications

Capacity:	42 cu-in
Color:	Silver
Country of Origin:	US
Dimensions:	4-11/16 in H x 4-11/16 in W x 2-1/8 in D
Finish:	Pre-Galvanized
Knockout Size:	1/2 in, 3/4 in
Material:	Steel
Number of Knockouts:	16
Series:	`
Shape:	Squared
