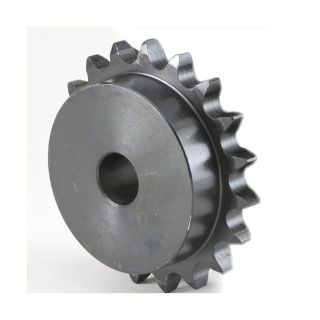

Actual Product May Vary From Image

25B24 UST

Name: 25B24 UST
Brand: US Tsubaki
SKU: 25B24 UST
Price: 16.26 USD
Availability: OutOfStock

Tsubaki® 25B24 Plain Bore Type B Single Pitch Roller Chain Sprocket, 3/8 in Dia Bore, 2.049 in OD, #25 Chain, 24 Teeth, 1/4 in Pitch, Carbon Steel

Manufacturer: US Tsubaki

Manufacturer part number: 25B24

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$16.26

Qty:

Product Details

Brand Name

Tsubaki®

Type

Plain Bore Type B

Alternate Supplier #

Applied Industrial Technologies - 100802506
Motion Industries - 00163256

Description

Associated with "B" style sprockets where there is no special machining performed to accommodate keyways or set screws, only a hole to accommodate shaft diameter.

Tsubaki® Single Pitch Roller Chain Sprocket, Plain Bore Type B, 3/8 in Bore Dia, 2.049 in Outside Dia, #25 Chain, 24 Teeth, 1/4 in Pitch, 1.915 in, 1-1/2 in Hub Dia, 8-32 Screw, 3/32 x 3/64 in Keyway, 5/8 in Length Through Bore, Carbon Steel

Application

Oil and Gas, Lumber, Mining, Primary Metals, Material Handling, Conveyor, Civil Engineering Projects, Machine Tool, Marine, Packaging Machinery, Pulp and Paper, Food Processing and Forestry

Standards

PTDA and CEMA Standard

Specifications

Bore Diameter:	3/8 in
Chain Size:	#25
Country of Origin:	CN
Hub Diameter:	1-1/2 in
Keyway Size:	3/32 x 3/64 in
Length Through Bore:	5/8 in
Material:	Carbon Steel
Number of Teeth:	24
Outside Diameter:	2.049 in
Pitch:	1/4 in
Pitch Diameter:	1.915 in
Screw Size:	8-32
