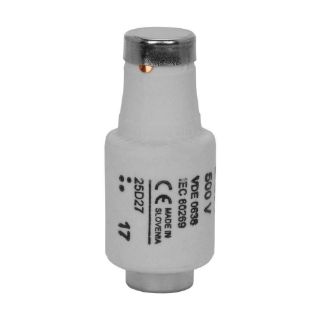

Actual Product May Vary From Image

25D27 BSF

Name: 25D27 BSF
Brand: Bussmann
SKU: 25D27 BSF
Price: 22.06 USD
Availability: OutOfStock

Bussmann 25D27 Type D Low Voltage Time Delay Fuse, 25 A, 500 V, 100 kA Interrupt, Class: GL/GG/C, Round Body

Manufacturer: Bussmann

Manufacturer part number: 25D27

Availability: Expected Leadtime 71 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

$22.06

Qty:

Product Details

Brand Name

Bussmann

Type

Type D Low Voltage Time Delay

Description

Bussmann range of type D diazed and do neozed fuse links is specifically designed for the protection of general industrial applications such as power distribution and cable protection. Both types D diazed and do neozed are available in three operating characteristics: time delay, fast acting and ultra rapid versions that fit into screw cap fuse link carriers for mounting in 1 or 3-pole DIN rail or panel mount.

Bussmann Fuse, Type D Low Voltage Time Delay, Non-Indicating, 25 A, 500 V, 100 kA Interrupt, Class: GL/GG/C, Cartridge Terminal, Holder Mounting, Round Body, Ceramic, Yellow, 21.5 mm Dia x 50 mm L Body

Application

Aftermarket, Control Panels for Machines, Panel Builders, OEMs, Electrical Assemblies, Panels, For the protection of general industrial applications such as power distribution and control and cable protection, stationary machine equipment in factory - robotics

Standards

CE Certified | DIN 49515 | GOST-R Certified | IEC 60269 | VDE Approved

Features

Characteristics to suit the protection needs of inductive and resistive loads
Fast trouble shooting with easily visible fuse operated pin indicator

Specifications

Amperage Rating:	25 A
Body Size:	21.5 mm Dia x 50 mm L
Body Type:	Round
Class:	gG/gL
Color:	Yellow
Country of Origin:	SI
Indicating/Non-Indicating:	Non-Indicating
Interrupt Rating:	100 kA
Material:	Ceramic
Mounting Type:	Holder
Terminal Type:	Cartridge
Voltage Rating:	500 V
