Picture of 25SS R 10FT MOR
Actual Product May Vary From Image

25SS R 10FT MOR

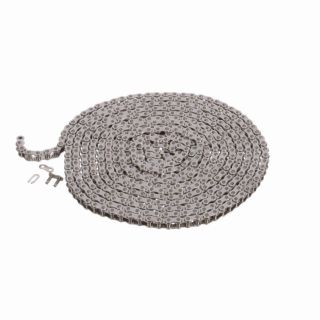

Morse® 340087 Riveted Standard Duty Roller Chain, 10 ft OAL, 1/4 in Pitch, 0.13 in Dia x 1/8 in W Roller, Stainless Steel
Manufacturer: Regal Rexnord
Manufacturer part number: 340087
Availability: Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$102.74

Product Details

Brand Name

Morse®

Type

Riveted Standard Duty

Description

Morse® markets roller chain featuring greater resistance and increased endurance limit. Morse® shot-peens its rollers to create a favorable state of compression residual stress on the surface. This process eliminates surface cracks and blemishes. The chain offered meets the standards required in the marketplace for many applications.
Morse® Roller Chain, Riveted Standard Duty, 1/4 in Pitch, 0.091 in Pin Diameter, 0.312 in Pin Length, 0.13 in Roller Diameter, 1/8 in Roller Width, 0.23 in Plate Height, 0.03 in Plate Thickness, 1 Links, 1 Strands, 875 lb Tensile Strength, 10 ft Overall Length, Stainless Steel

Application

Aggregate, Cement, Forestry, Minerals, Mining, Pulp and Paper Industries

Standards

ANSI B29.1

Features

  • Created for applications requiring high horsepower at low speeds
  • Unmatched quality and performance
  • 304 series stainless steel for the most corrosive environments
  • Without roller

Specifications

Country of Origin:JP
Material:Stainless Steel
Number of Links:1
Number of Strands:1
Overall Length:10 ft
Pin Diameter:0.091 in
Pin Length:0.312 in
Pitch:1/4 in
Plate Height:0.23 in
Plate Thickness:0.03 in
Roller Diameter:0.13 in
Roller Width:1/8 in
Tensile Strength:875 lb
