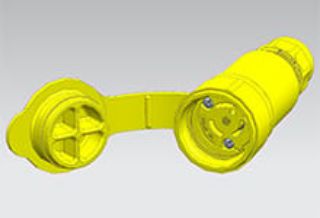

Actual Product May Vary From Image

25W34 WOO

Name: 25W34 WOO
Brand: Molex/Woodhead
SKU: 25W34 WOO
Price: 62.03 USD
Availability: OutOfStock

Woodhead® Watertite® Extreme 25W34 130146 Female Locking Connector With Locking Blade, 277 VAC, 15 A, 2 Poles, 3 Wires, Yellow

Manufacturer: Molex/Woodhead

Manufacturer part number: 25W34

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$62.03

Qty:

Product Details

Brand Name

Woodhead®

Type

Female

Description

Woodhead® Watertite® Extreme Locking Connector, Female, Series: 130146, 277 VAC, 15 A, 2 Pole, 3 Wire, NEMA L7-15, IP67/IP69K Enclosure, -40 to 75 deg C, Silicone, Yellow

Standards

CSA File No. LR6837 | UL File No. E10176

Features

F2 body 1/2 in cable grip
Multiple seal plug/connector interface keeps out contaminants, resists vapor and water from high pressure washdown up to 1000 psi
Color coded 1/4 in terminal screws pre-set in open position ready to wire
Wire screw terminals are tri-drive to be used with straight blade, Phillips® and square drive screwdrivers
Floating blade construction provides self-alignment and a better mechanical and electrical connection minimizing wear and heat generation
Transparent wiring guide to verify all wire strands are in place before securing wire
Captive, tri-drive head, stainless steel, speed screw provides easy assembly and long life
3-piece strain relief seals cord without damaging the cord

Specifications

Amperage Rating:	15 A
Color:	Yellow
Country of Origin:	MX
Enclosure:	IP67/IP69K
Material:	Silicone
NEMA Rating:	NEMA L7-15
Number of Poles:	2
Number of Wires:	3
Series:	130146
Temperature Rating:	-40 to 75 deg C
Voltage Rating:	277 VAC
