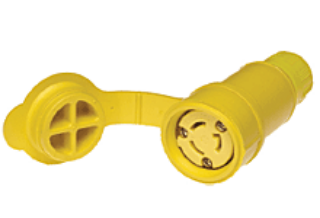

Picture of 25W47GCM WOO
Actual Product May Vary From Image

25W47GCM WOO

Woodhead® 25W47GCM 130146 Female Connector With Locking Blade, 125 VAC, 15 A, 2 Poles, 3 Wires, Yellow
Manufacturer: Molex/Woodhead
Manufacturer part number: 25W47GCM
Availability: Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
Price on Request

Product Details

Brand Name

Woodhead®

Description

Woodhead® Female Connector, Series: 130146, 125 VAC, 15 A, 2 Pole, 3 Wires, NEMA L5-15 NEMA Rating, IP67 Enclosure, -40 to 75 deg C, Yellow

Standards

CSA File No. LR6837 | UL File No. E10176

Features

  • F2 1/2 in cord grip body
  • Multiple seal plug/connector interface keeps out contaminants resists vapor and water from highpressure wash down up to 1000 psi
  • Color-coded 1/4 in terminal screws pre-set in open position, ready to wire
  • Wire screw terminals are tri-drive to be used with straight blade, Phillips and square-drive screw drivers
  • Floating blade construction provides self-alignment, and a better mechanical and electrical connection minimizing wear and heat generation
  • Transparent wiring guide to verify all wire strands are in place before securing wire
  • Captive, tri-drive head, stainless steel, speed screw provides easy assembly and long life
  • Three piece strain relief seals cord without damaging the cord
  • Ground continuity monitor

Specifications

Amperage Rating:15 A
Color:Yellow
Country of Origin:US
Enclosure:IP67
NEMA Rating:NEMA L5-15
Number of Poles:2
Number of Wires:3
Series:130146
Temperature Rating:-40 to 75 deg C
Voltage Rating:125 VAC
